DJI O4 Ground Station Pushes Dock 3 Programs Past Network Dead Zones

DJI released the DJI O4 Ground Station on June 16, 2026, a fixed transmission node built to keep DJI Dock 3 drone programs connected in places where cellular networks thin out or vanish. The hardware tackles the failure mode that ends most long-range missions before they finish: the moment the video link drops and the operator loses the aircraft’s feed. Instead of treating signal loss as a hazard to fly around, the O4 Ground Station tries to remove the dead zones from the map.

The unit runs two modes. Gateway Mode connects straight to FlightHub 2 over the internet and extends coverage up to 30 kilometers (18.6 miles) when paired with Dock 3. Relay Mode drops the network requirement entirely, passing the video signal across valleys and signal-blocked corridors, and reaches up to 40 kilometers (24.9 miles) when working with the DJI Matrice 400. The 40 km figure has long been the headline number DJI attaches to that aircraft. What changes here is that the ground station, not a second airborne drone, carries the relay.

The IP67 rating, solar-power compatibility, and a 7-watt standby draw point at the actual customer: public safety, inspection, and survey crews running unattended operations around the clock in terrain that punishes equipment.

Gateway Mode Cuts the Cord Between Stations and a Specific Dock

Gateway Mode connects the O4 Ground Station directly to FlightHub 2 through Ethernet or the DJI Cellular Dongle 2, which means the station no longer has to sit next to a particular Dock 3. That is the structural change worth understanding. Earlier deployments tied transmission range to the dock’s own proximity. By routing the feed over the internet, DJI lets operators plant the station wherever the signal needs reinforcing and push coverage out to 30 km.

Two FlightHub 2 features ride along with the mode. Signal Map reads post-flight data and marks weak coverage zones on a map, so the next deployment can be positioned more precisely rather than by guesswork. Virtual Cockpit lets an operator take manual control of the aircraft from inside FlightHub 2, overriding a preset route within the station’s coverage area when a mission shifts mid-flight. Pilots running drone-as-first-responder programs will recognize the value immediately, since the same logic underpins networked deployments like the 22-station Dock network El Paso built on FlightHub 2 On-Premises.

Relay Mode Inherits D-RTK 3 Function for Off-Grid Reach

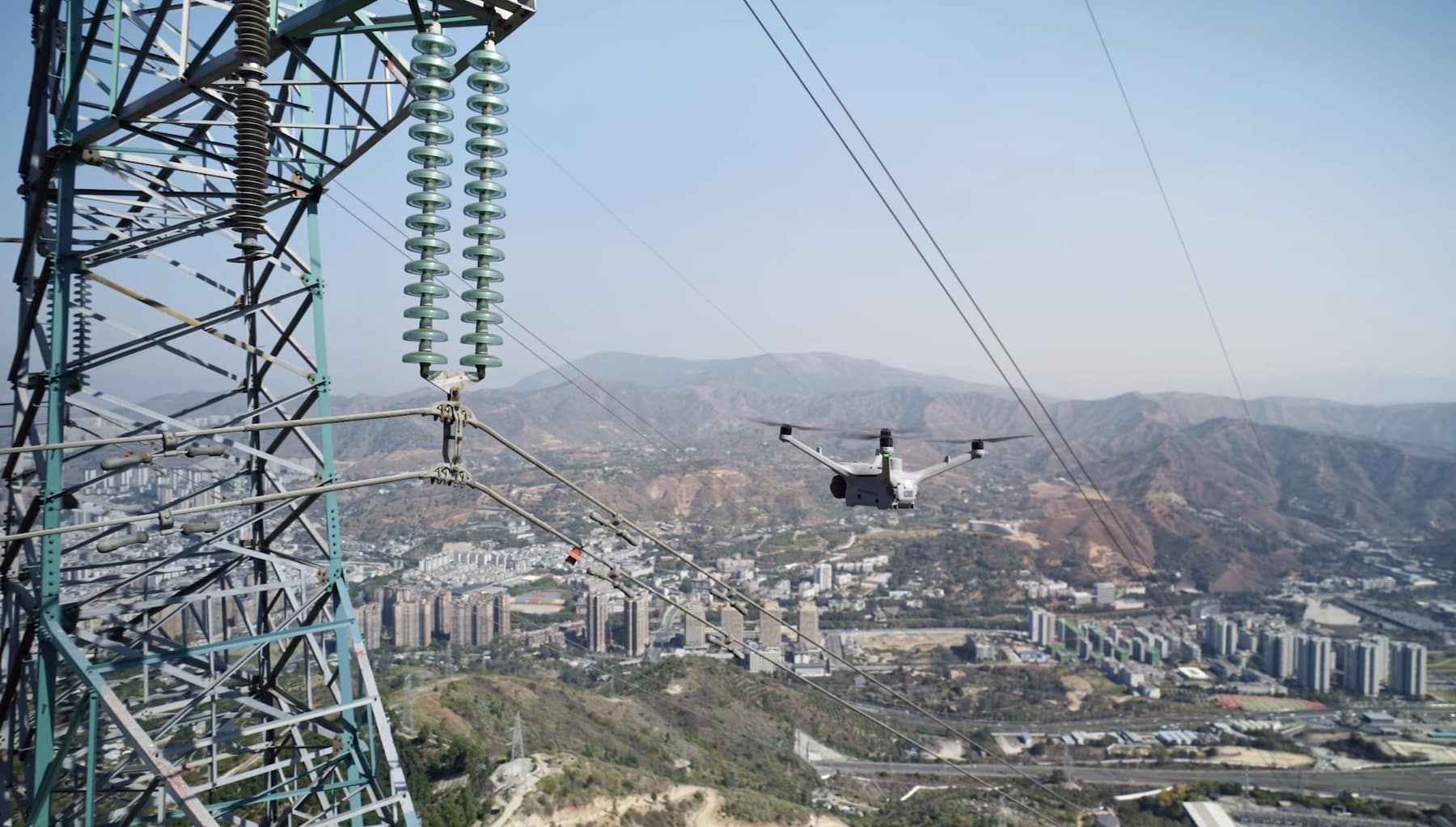

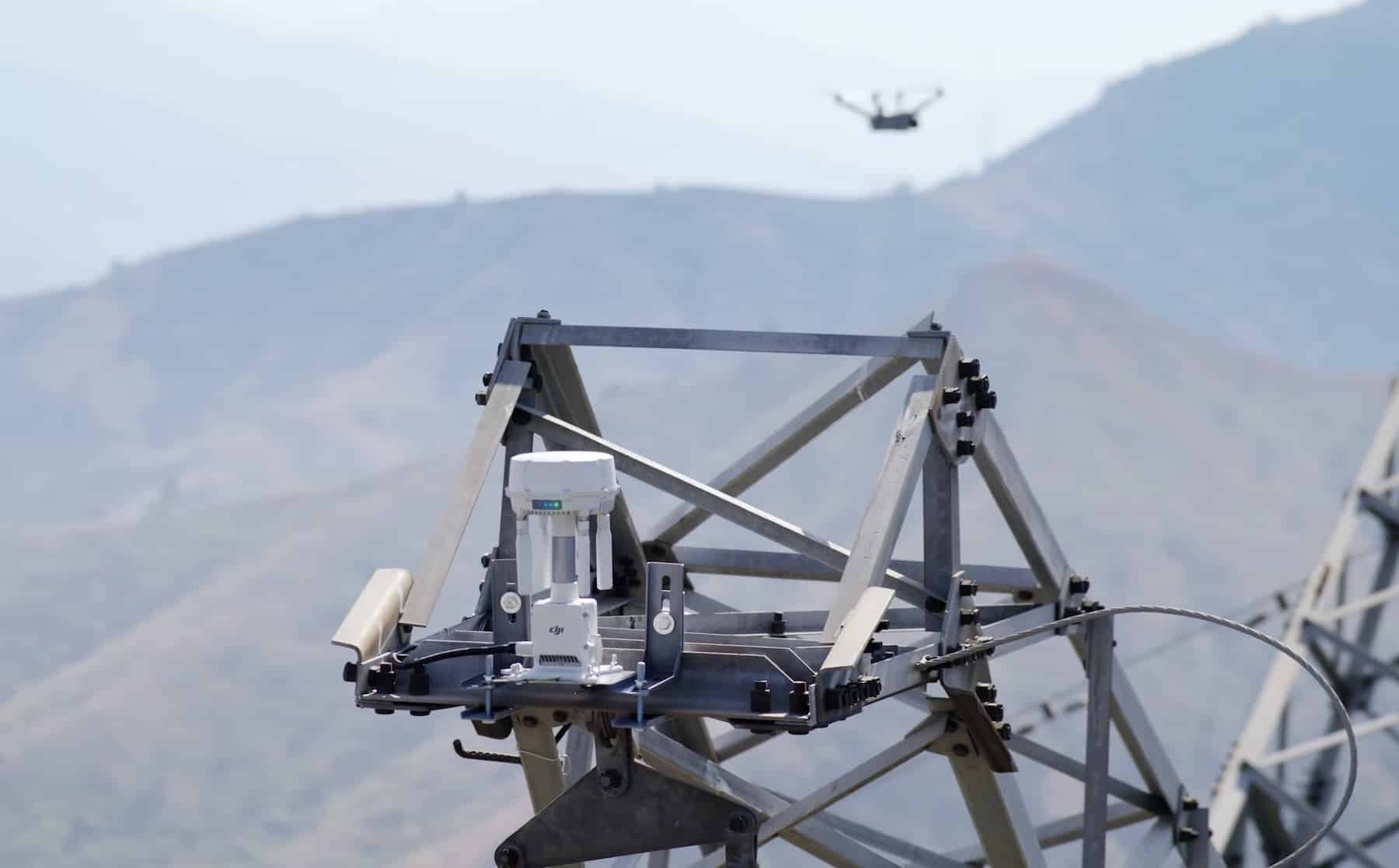

Relay Mode carries over the relay station function from the D-RTK 3 Relay Fixed Deployment Version. In offline areas, operators position the station on high ground and use it to bounce the aircraft’s video transmission past obstructions, as DJI’s product page describes it. Controllers or Docks within range scan and connect to the station, which keeps the relay alive without any network coverage at all.

The 40 km relay figure applies when the station works with the Matrice 400, and the supported list narrows for this mode. Relay Mode covers Dock 3, Matrice 400, Matrice 4E, Matrice 4T, Matrice 4D, Matrice 4TD, and FlyCart 100. DJI notes the relay feature is unavailable in countries without 5 GHz frequency support, naming Japan and Kazakhstan as examples, which is a real operational constraint and not marketing boilerplate. Gateway Mode, by contrast, currently lists only Dock 3.

A multi-device rotation function lets a single station service different aircraft in sequence. Remote controllers or Docks within signal range scan and connect on their own, so one station can hand off between aircraft and raise hardware utilization across a fleet. The single-operator, multiple-aircraft logic echoes what regulators are already approving elsewhere, including the FAA framework letting one pilot run up to four Skydio drones. For agencies that bought into the relay concept through the Matrice 400’s airborne relay capability, this moves the relay off the aircraft and onto stationary infrastructure that does not burn flight batteries.

Twelve-Antenna Array and Sub-2G Band Target Urban RF Congestion

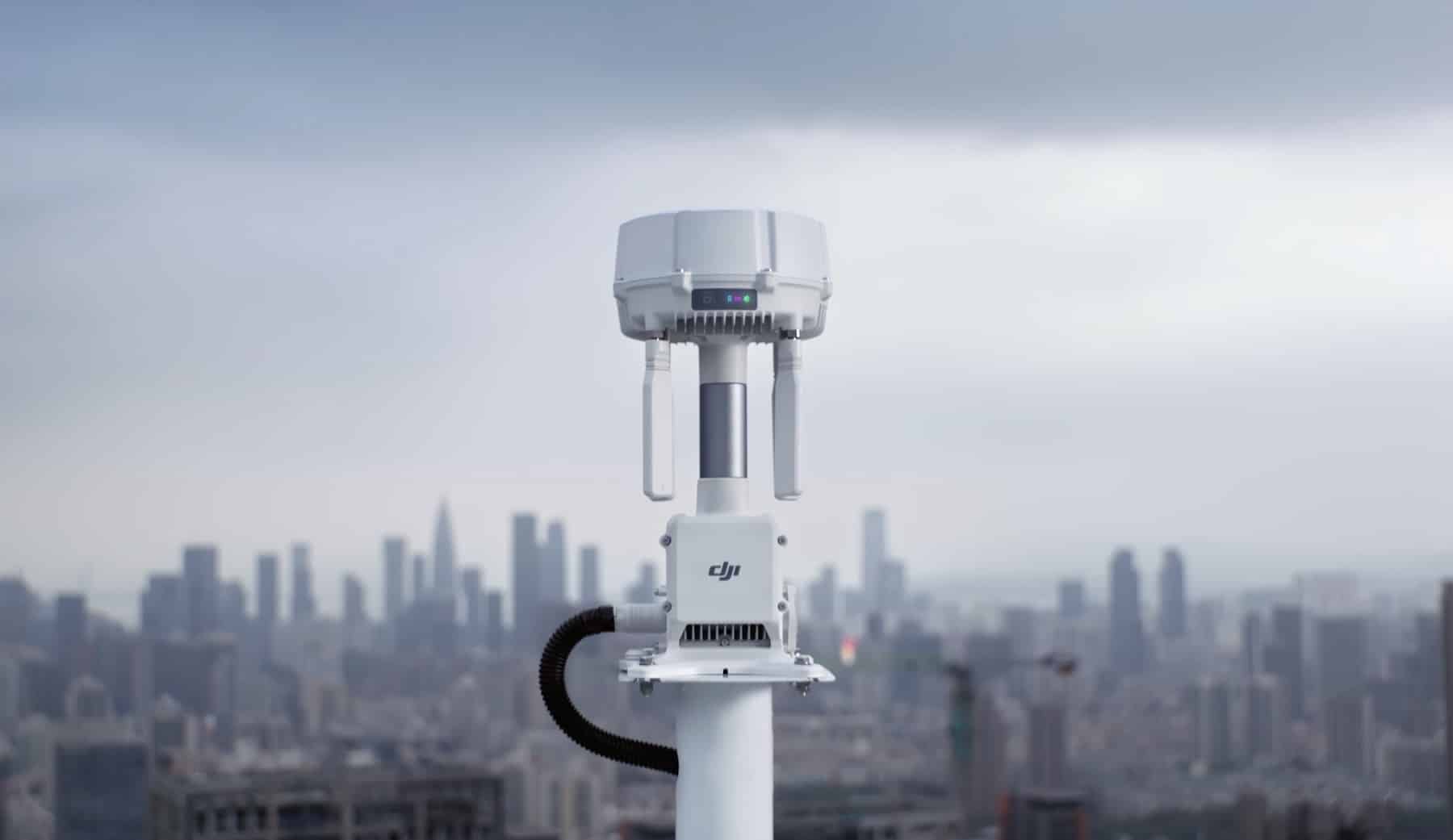

The O4 Ground Station uses a 12-antenna array, mixing internal and external antennas with horizontal and vertical polarization for omnidirectional, high-gain coverage. Sub-2G band support improves signal penetration through dense obstructions, and an automatic multi-band selection system shifts across sub-2G, 2.4 GHz, 5.2 GHz, 5.8 GHz, and other bands to dodge interference.

The frequency-hopping logic matters most in cities, where wireless signals compete for bandwidth and a fixed channel degrades fast. Positioning has its own dedicated hardware: an integrated high-gain RTK module tracks 19 frequencies across five global satellite systems, acquiring centimeter-level positioning even in urban canyons or under heavy tree canopy. The same RTK precision that keeps the Matrice 400 flying stably near glass facades carries into the ground station’s job of holding a fix in cluttered environments.

DJI Builds the Station as an Integration Hub for IP Cameras and ADS-B

The O4 Ground Station goes past relaying drone video. Multi-protocol ports let it accept standard IP cameras and stream those feeds into FlightHub 2 alongside the aircraft video, putting air and ground footage under one management view. That turns the station into a fixed sensor node that does more than carry a communications link.

DJI also introduced an MQTT-based ESDK 2.0 to lower the development barrier for connecting third-party hardware. Operators can attach Remote ID or ADS-B receivers to watch the airspace around Dock 3. When FlightHub 2 detects nearby aircraft, it triggers alerts so the drone can avoid them, and a single click can deploy the drone to check a signal source with logs generated automatically. The airspace-awareness angle matters most for the kind of always-on municipal and commercial programs that already run Dock 3 unattended, like the Austrian ski resort running automated Dock 3 inspections at 2 a.m. without a crew on site. Software and power self-recovery mechanisms support 24/7 remote operation while cutting maintenance trips, and the smart low-power mode hibernates the station to that 7-watt standby draw when no drone is connected. For off-grid sites, the station pairs with DJI Power solar solutions or third-party PV systems.

The Supported Model Split Tells the Deployment Story

The gap between the two mode lists is the most useful spec on the page. Gateway Mode supports Dock 3 only, while Relay Mode spans the broader Matrice 4 and FlyCart lineup. That split signals where DJI expects the hardware to land first: automated Dock 3 programs that need internet-routed range today, with the wider fleet folded into the offline relay use case.

DroneXL’s Take

The relay concept is not new for this hardware family. When DJI launched the Matrice 400 in June 2025, the airborne relay function was the feature that let one aircraft fly high and pass signal to another across blocked terrain. The catch was always obvious to anyone who covered it: a relay drone in the air is a second aircraft you are not using for the actual mission, and its battery is a clock. The O4 Ground Station moves that relay onto fixed infrastructure that draws 7 watts on standby instead of consuming flight time. That is the real delta here, and it is a sensible one.

The honest read on the 30 km and 40 km numbers is that they describe clean-environment maximums. DJI’s own range figures carry the standard qualifier about unobstructed conditions free of interference, and DroneXL has flagged that caveat on every Matrice 400 range claim since the aircraft launched in June 2025. The whole reason Signal Map and the 12-antenna array exist is that real deployments are not clean. A reader planning a deployment should treat those figures as ceilings, not expectations, and budget for the Signal Map step DJI clearly wants operators to run.

The part of this launch I cannot resolve from the product page is regulatory. The relay feature already carries a 5 GHz dependency that DJI flags for Japan and Kazakhstan. For U.S. operators, the larger open question is how a fixed DJI transmission node fits into the company’s ongoing position on the FCC Covered List situation, which is working through DJI’s Ninth Circuit appeal. DJI did not address that in the launch material, and a product page is not the venue where it would. Whether agencies running federally funded Dock 3 programs can build permanent infrastructure around this hardware is a procurement question the spec sheet does not answer, and it is the one worth watching as the hardware reaches the U.S. market.

Source: DJI Enterprise.
