DJI Mini SE specs shown on the DJI Brasil website

DJI Mini SE specs shown on the DJI Brasil website

Today we noticed that the new DJI Mini SE is already visible on the DJI Brasil website. Let’s take a closer look at the DJI Mini SE specs and some of the photos of this attractively priced but low-end specced drone.

DJI Mini SE specs shown on the DJI Brasil website

We already knew that the DJI Mini SE would be making its way to the market. Today we first discovered it listed on the DJI Brasil website.

The DJI Mini SE is effectively a DJI Mini 2 with the specs of the original DJI Mavic Mini and will be offered at a lower price. Earlier we have seen photos that were leaked by Walmart. However, today we learned from Ti Xie, Public Relations Director at DJI that the Mini SE will only be offered in Russia, Southeast Asian countries, and South American countries.

“The DJI Mini SE is a specialized product tailored for entry-level drone pilots in markets where consumer drone use is emerging. It uses the internal components of the Mavic Mini in the shell of the Mini 2, which generates slightly higher wind resistance but provides much of the performance of the original Mavic Mini at a very attractive price.

There are currently no plans to sell this product in the US or Europe (apart from Russia). DJI Mini 2 remains our flagship entry-level drone, with its superior 4K/30fps resolution and up to 10km image transmission (subject to local rules and regulations).”

It seems that DJI is offering a new gateway drug into the drone hobby and profession but only in markets where the DJI Mini 2 may be priced out of reach of the target audience.

According to the DJI Mini SE specs the aircraft uses Optimized Wi-Fi for the video transmission between the drone and the remote controller instead of OcuSync 2.0. Also, the photos on the Brazilian website show the remote controller from the DJI Mavic Mini and not from the Mini 2.

The DJI Mini SE can be seen on the Brazilian and Singaporean DJI websites. In the lower right-hand corner of the site, you can switch to these regions and find out for yourself.

Let us know in the comments below. Are you excited about the Mini SE or will you keep saving money and get the much better and more expensive Mini 2 instead?

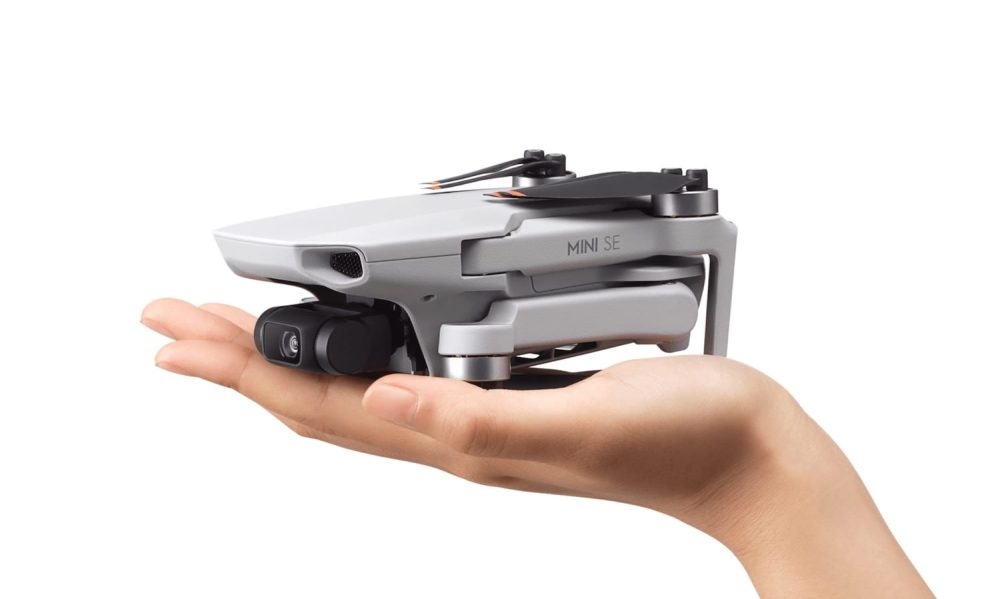

DJI Mini SE already shown on the DJI Brasil website

DJI Mini SE specs DJI Mini SE specifications

AIRCRAFT

Takeoff weight
<249 g

Dimensions
Folded: 138×81×58 mm (Length x Width x Height)
Unfolded: 159×203×56 mm (Length x Width x Height)
Unfolded (with propellers): 245×289×56 mm (Length x Width x Height)

Diagonal distance
213 mm

Max speed of ascent
4 m/s (Mode S)
2 m/s (Mode P)
1.5 m/s (Mode C)

Max speed of descent
3 m/s (Mode S)
1.8 m/s (Mode P)
1 m/s (Mode C)

Max speed (close to sea level, no wind)
13 m/s (Mode S)
8 m/s (Mode P)
4 m/s (Mode C)

Max. altitude takeoff
3000 m

Max. time of flight
30 min. (measured when flying at 17 km/h in windless conditions)

Max. To the wind
8.5 m/s to 10.5 m/s (scale 5)

Max. angle tilt
30th (Mode S)
20th (Mode P)
20th (Mode C)

Max speed angular
150°/s (Mode S)
130°/s (Mode P)
30°/s (Mode C)

Operating temperature range
0° to 40°C

Operating frequency [2]
Model MT2SS5: 5.725-5.850 GHz
Model MT2SD25: 2.400-2.4835 GHz; 5.725-5.850 GHz

Transmission power (EIRP)
Model MT2SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MT2SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)

GNSS
GPS+GLONASS

Precision range in stationary flight
Vertical: ± 0.1 m (with visual positioning); ± 0.5 m (with GPS positioning)
Horizontal: ± 0.3 m (with visual positioning); ± 1.5 m (with GPS positioning)

dji mini se

STABILIZER

Mechanical reach
Inclination: -110° to 35°
Rotation: -35° to 35°
Rotation: -20° to 20°

Controllable range
Slope:
-90° to 0° (default setting)
-90° to 20° (extended)

Stabilization
Triaxial (tilt, rotation, swivel)

Max speed control (slope)
120 °/s

Angular vibration range
±0.01°

DETECTION SYSTEM

Bottom
Working range: 0.5 – 10 m

Operating environment
Non-reflective and identifiable surfaces
Diffuse reflectivity (>20%)
Adequate lighting (lux>15)

CAMERA

Sensor
1/2.3” CMOS
Effective Pixels: 12 MP

Lens
Field of View (FOV): 83°
35mm equivalent format: 24mm
Aperture: f/2.8
Shooting range: 1 ma ∞

ISO reach
Video:
100 – 3200 (automatic)
100 – 3200 (manual)
Photo:
100 – 3200 (automatic)
100 – 3200 (manual)

Shutter speed
Electronic shutter: 4-1/8000 s

Image size
4:3: 4000×3000
16:9: 4000×2250

Photography modes
Single
shot Interval: 2/3/5/7/10/15/20/30/60 s

Video resolutions
2.7K: 2720×1530 at 24/25/30 fps
FHD: 1920×1080 at 24/25/30/48/50/60 fps

Max. bitrate from the video
40 Mbps

Supported file system
FAT32 (≤32GB)
exFAT (>32GB)

photo format
JPEG

video format
MP4 (H.264/MPEG-4 AVC)

dji mini se specs

REMOTE CONTROL & VIDEO TRANSMISSION

Operating frequencies
Model MR1SS5: 5.725-5.850 GHz
Model MR1SD25: 2.400-2.4835 GHz; 5.725-5.850 GHz

Max. distance transmission (unobstructed, interference-free)
Model MR1SS5
5.8GHz: 4000m (FCC); 2500 m (SRRC)
Model MR1SD25
2.4 GHz: 2000 m (MIC/CE)
5.8 GHz: 500 m (CE)

Operating temperature range
0° to 40°C

Transmission power (EIRP)
Model MR1SS5
5.8GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MR1SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)

Battery capacity
2600 mAh

Operating voltage/current
1200 mA; 3.6V (Android)
450mA; 3.6V (iOS)

Dimensions of supported mobile devices
Max. length: 160 mm
Max. thickness: 6.5 – 8.5 mm

Supported USB Input Types
Lightning, Micro USB (Type B), USB-C

Video transmission system
Optimized Wi-Fi

Live Stream Quality
720p/30fps

Max Rate bit
4 Mbps

Latency (depends on environment and mobile device conditions)
From 170 to 240 ms

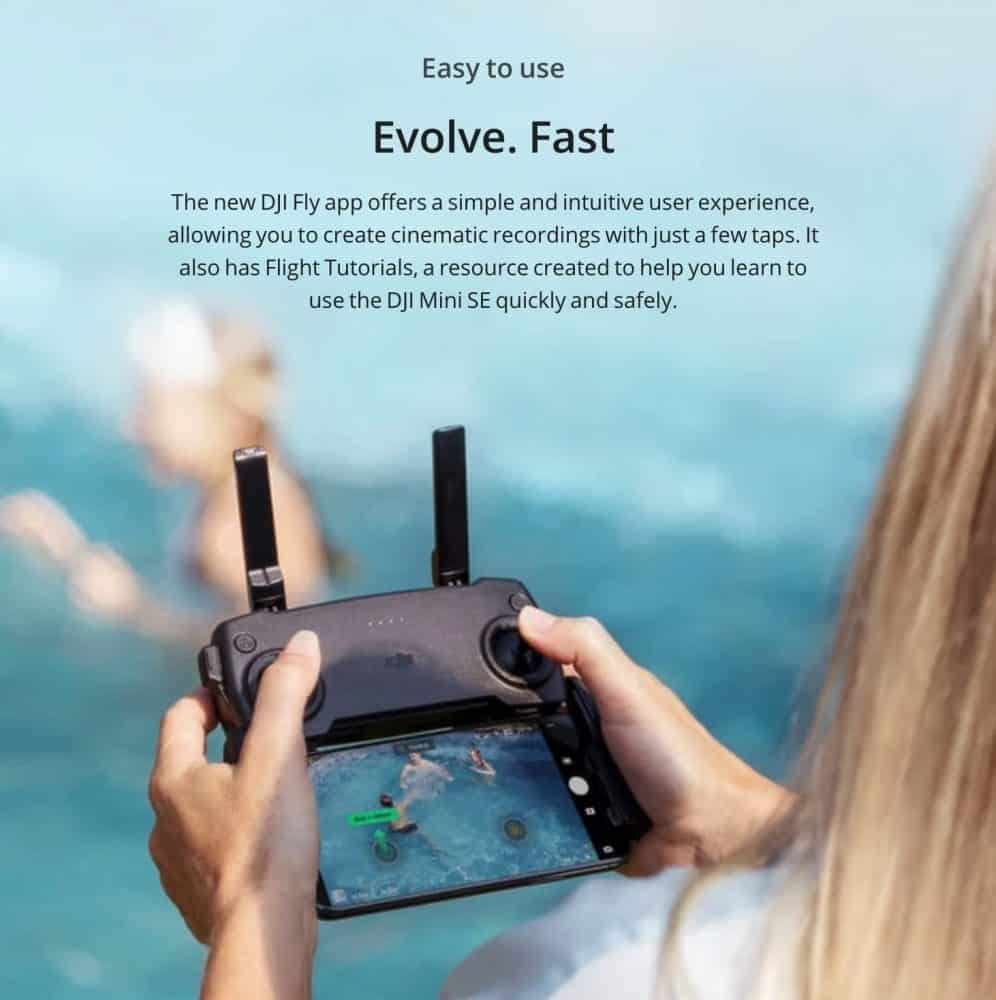

DJI Mini SE remote controller

LOADER

Input
100 – 240V; 50/60 Hz; 0.5 A

Exit
12V 1.5A/9V 2A/5V 3A

Rated power
18W

INTELLIGENT FLIGHT BATTERY

Capacity
2250 mAh

Voltage
7.7V

Max. voltage loading
8.8V

Battery Type
Lipo 2S

Energy
17.32 Wh

Net weight
82.5 g

Charging temperature range
5° to 40°C

Max. power loading
29W

APPLICATION

Name
DJI Fly

Necessary operating systems
iOS v10.0 or higher
Android v6.0 or higher

SUPPORTED SD CARDS

SD card supported
Requires UHS-I Class 3 or higher speed. A list of recommended microSD cards can be found here.

Recommended microSD cards
16GB: SanDisk Extreme, 32GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial, Sandisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme Pro V30 A2, Lexar 633x, Lexar 667x, 64GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
128GB: Samsung Evo Plus, SanDisk Extreme V30 A2, SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1, 256 GB: SanDisk Extreme V30 A2
