DJI’s latest offering, the Neo drone, packs advanced features into a lightweight, portable design that meets C0 certification requirements for European markets. As revealed in the user manual shared by Jasper Ellens, the DJI Neo brings multiple control methods and intelligent shooting modes to the ultra-compact drone segment.

DJI Neo User Manual: Key Features and Specifications

The DJI Neo, equipped with a standard propeller guard, is designed for both indoor and outdoor flight, offering stable hovering and smooth aerobatic maneuvers. Notable features include:

  • Palm takeoff/landing support
  • Multiple control methods: Palm Control, Mobile App Control, and Remote Controller options
  • Intelligent shooting modes accessible via the mode button or app
  • FPV capabilities when used with compatible goggles and remote control devices
  • Max flight altitude of 30 m (98 ft) and max flight distance of 50 m (164 ft) in Palm Control mode

It’s important to note that the Neo does not feature obstacle sensing, so users should fly with caution.

DJI Neo beside sunglasses, a wallet and a phone on a wooden table.
DJI Neo User Manual: Compact C0 Drone Offers Versatile Control and Intelligent Features

DJI Neo Flight Mode Flexibility Varies by Control Method

The DJI Neo’s flight mode options depend on how you’re controlling the drone:

  • Palm Control and Mobile App Control: Flight mode switching isn’t available.
  • DJI RC-N3 Remote Controller: Toggle between Normal, Sport, and Cine modes using the dedicated switch.
  • Motion Controller: Switch between Normal and Sport modes via the mode button.
  • FPV Remote Controller: Access Normal, Sport, and Manual modes with the flight mode switch.

This versatility allows pilots to adapt the Neo’s performance to their skill level and flying environment, but it’s important to note which control method you’re using to understand your available flight modes.

Normal Mode: The aircraft can hover precisely and fly stably and is suitable for most flight scenarios.
Sport Mode: The maximum horizontal flight speed of the aircraft will increase in Sport mode.
Cine Mode: Cine mode is based on Normal mode with a limited flight speed, making the aircraft more stable during recording.
Manual Mode: Classic FPV aircraft control mode with the highest maneuverability. In Manual mode, all flight assistance functions including precise hovering and auto-brake are disabled, and proficient control skills are required.

Innovative Control Methods

The Neo offers three primary control methods:

  1. Palm Control: Enables intuitive gesture-based control within a 50 m range
  2. Mobile App Control: Connects to the DJI Fly app via Wi-Fi for parameter adjustments and virtual joystick control
  3. Remote Controller: Supports devices like the DJI RC-N3 for extended range and additional features

“When using Palm Control, the max flight altitude of DJI Neo is 30 m and the max flight distance is 50 m,” the manual states, emphasizing the importance of maintaining visual line of sight.

Intelligent Shooting Modes

DJI Neo comes equipped with various Smart Snap modes, including:

  • Follow
  • Dronie
  • Circle
  • Rocket
  • Spotlight
  • Custom modes: DirectionTrack, Helix, Boomerang

Users can switch between modes using the mode button on the drone or through the mobile app. The Neo will automatically fly and record video based on the selected mode and preset parameters.

DJI Neo Overview

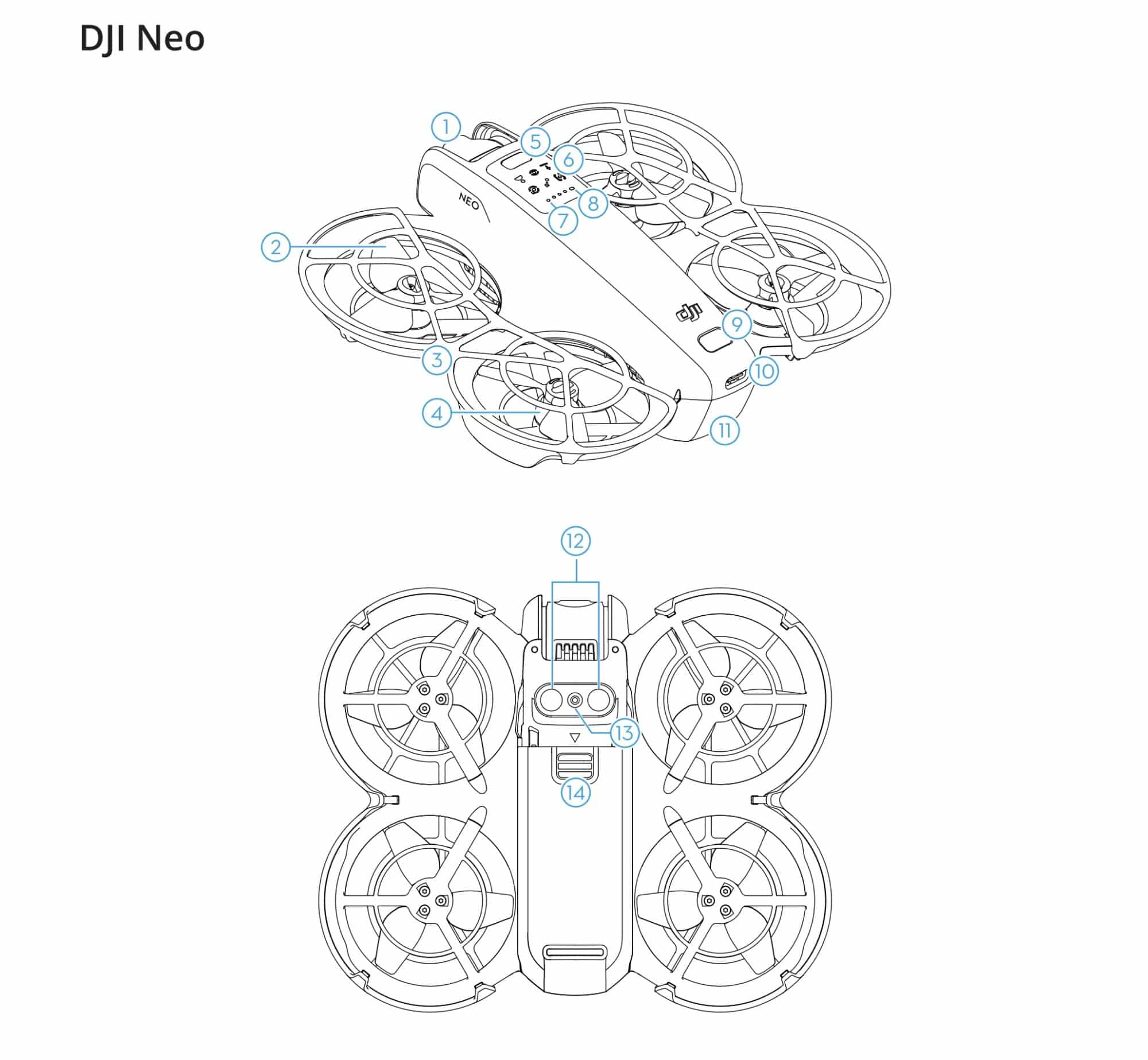

Manual diagram of the DJI Neo from above and below with numbered part callouts.
DJI Neo User Manual
  1. Gimbal and Camera
  2. Propellers
  3. Propeller Guard
  4. Motors
  5. Mode Button
  6. Mode Indicators
  7. Battery Level LEDs
  8. Status Indicator
  9. Power Button
  10. USB-C Port
  11. Intelligent Flight Battery
  12. Infrared Sensing System
  13. Downward Vision System
  14. Battery Latch
Close-up of the DJI Neo with propeller guards resting on a wooden floor.

Advanced Features

The Neo boasts several advanced capabilities:

  • Voice Control: Users can enable voice wake-up and control the drone using voice commands
  • Intelligent Flight Modes: FocusTrack, Spotlight, POI, and ActiveTrack
  • QuickShots and Cruise Control
  • Multiple Flight Modes: Normal, Sport, Cine, and even a Manual mode for FPV enthusiasts

“DJI Neo can be used as an entry-level drone for Manual mode. It is suitable for practicing throttle control, maintaining altitude, and level flight,” the manual notes, cautioning against high-speed maneuvers due to propulsion limits.

Technical Specifications

  • Gimbal Control Range: -90° to +60°
  • Internal Storage: Available for saving photos and videos (22 GB)
  • QuickTransfer: Enables easy export of footage to mobile devices
  • Charging: DJI Neo Two-Way Charging Hub can charge up to three batteries in about 60 minutes with a DJI 65W Portable Charger

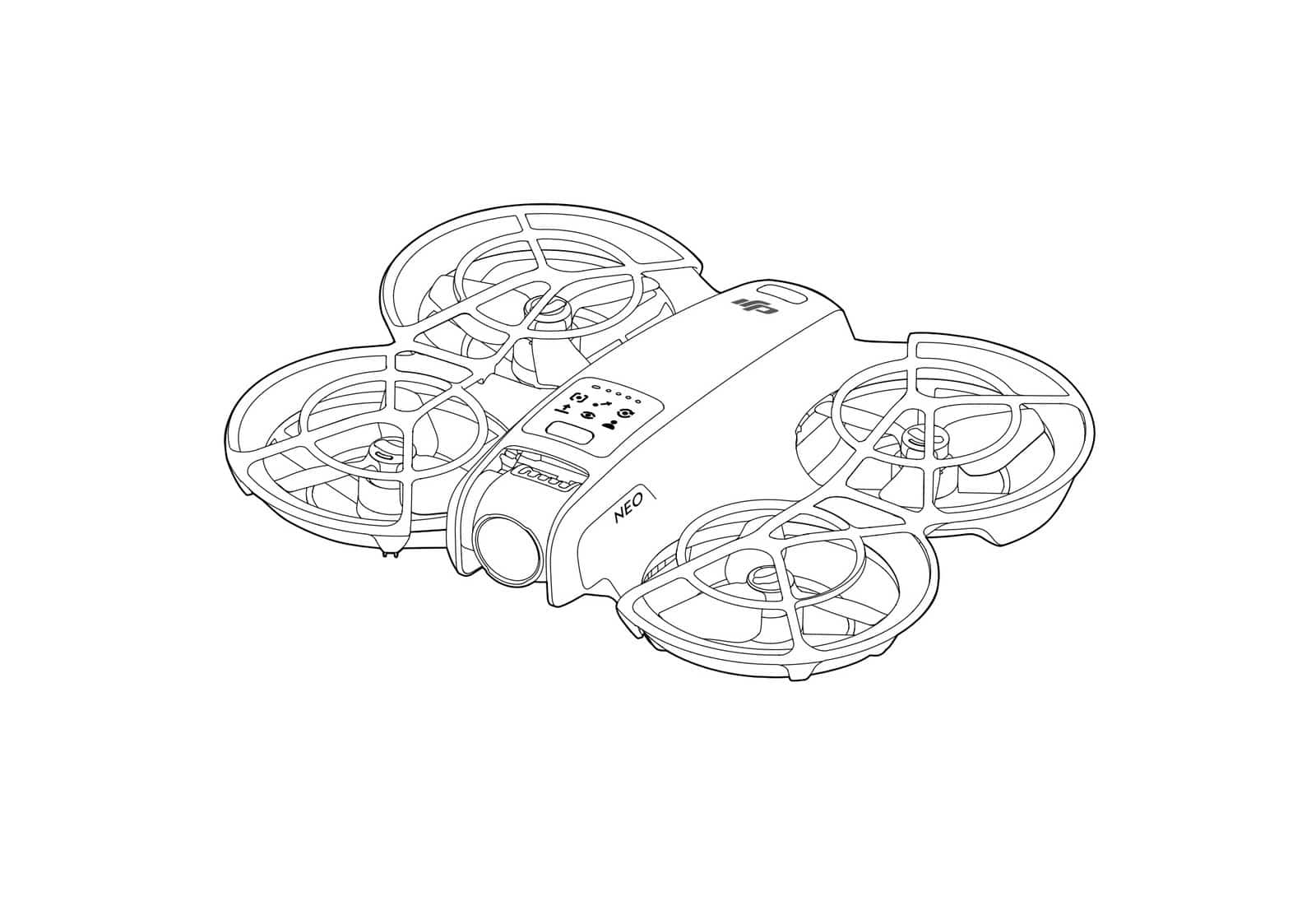

Line drawing of the Neo in three-quarter view with its four propeller guards.

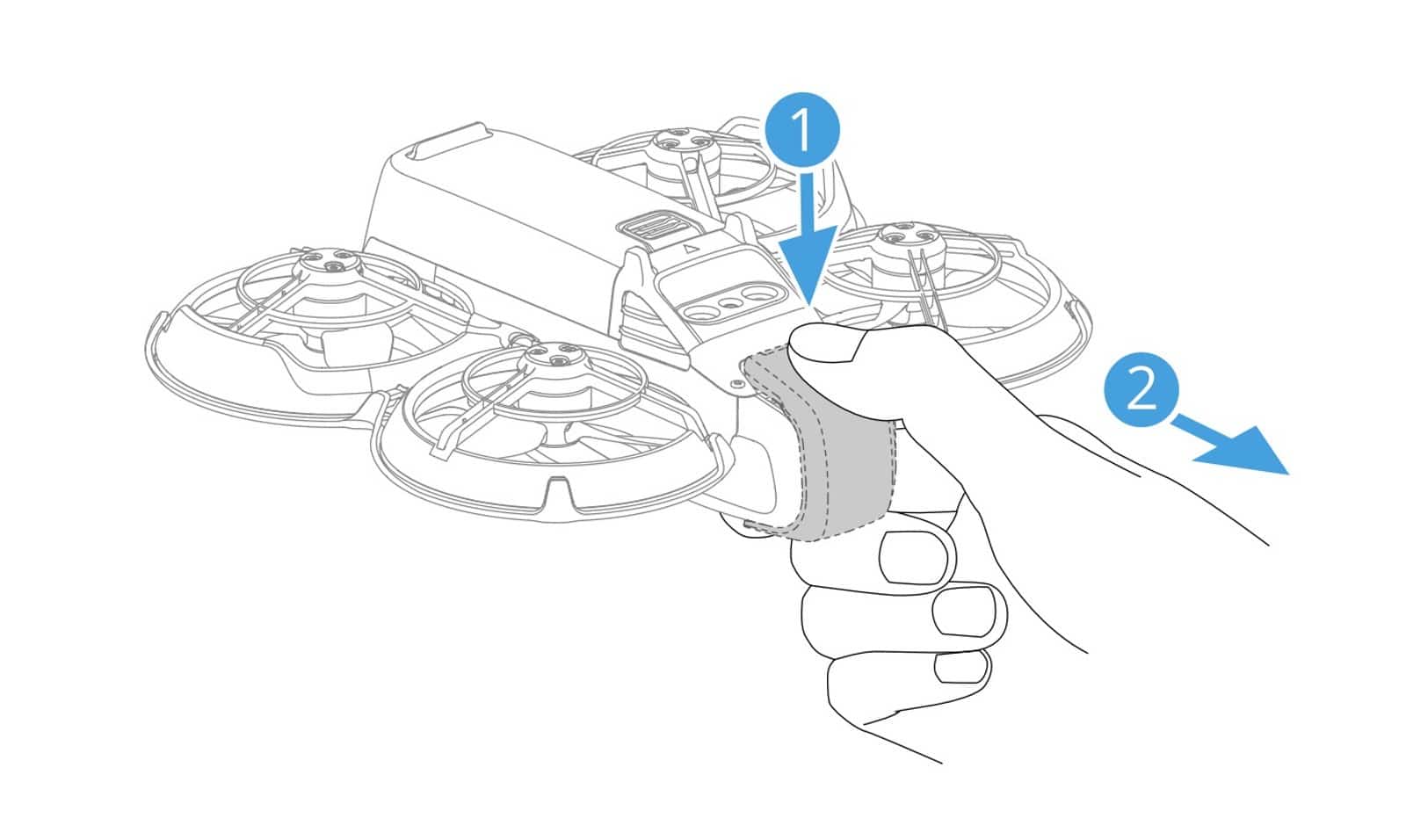

Diagram showing a thumb pressing the latch to slide the Neo battery out.

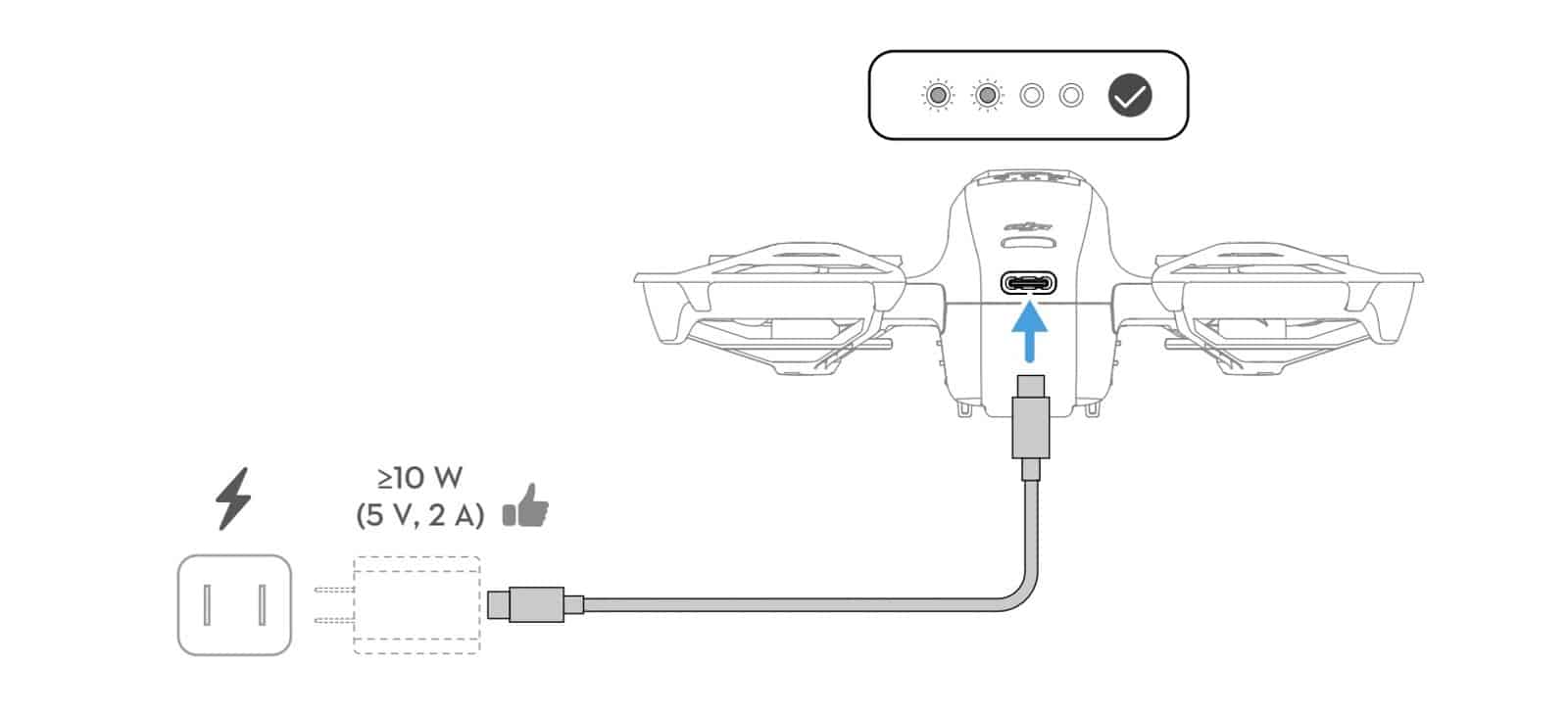

Charging diagram connecting the Neo to a 10 W USB adapter with the level indicator lit.

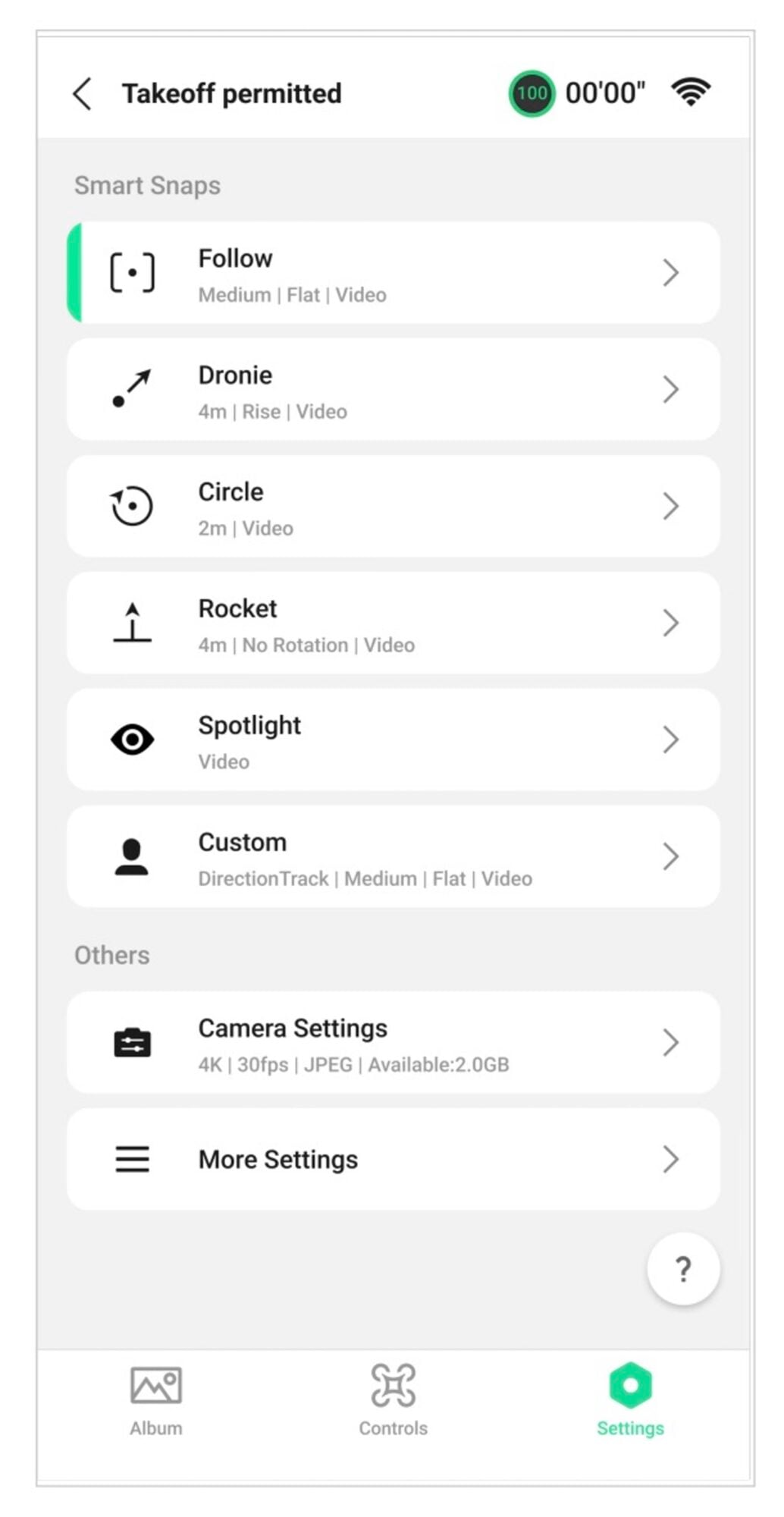

DJI Fly Smart Snaps menu listing Follow, Dronie, Circle, Rocket, Spotlight and Custom.

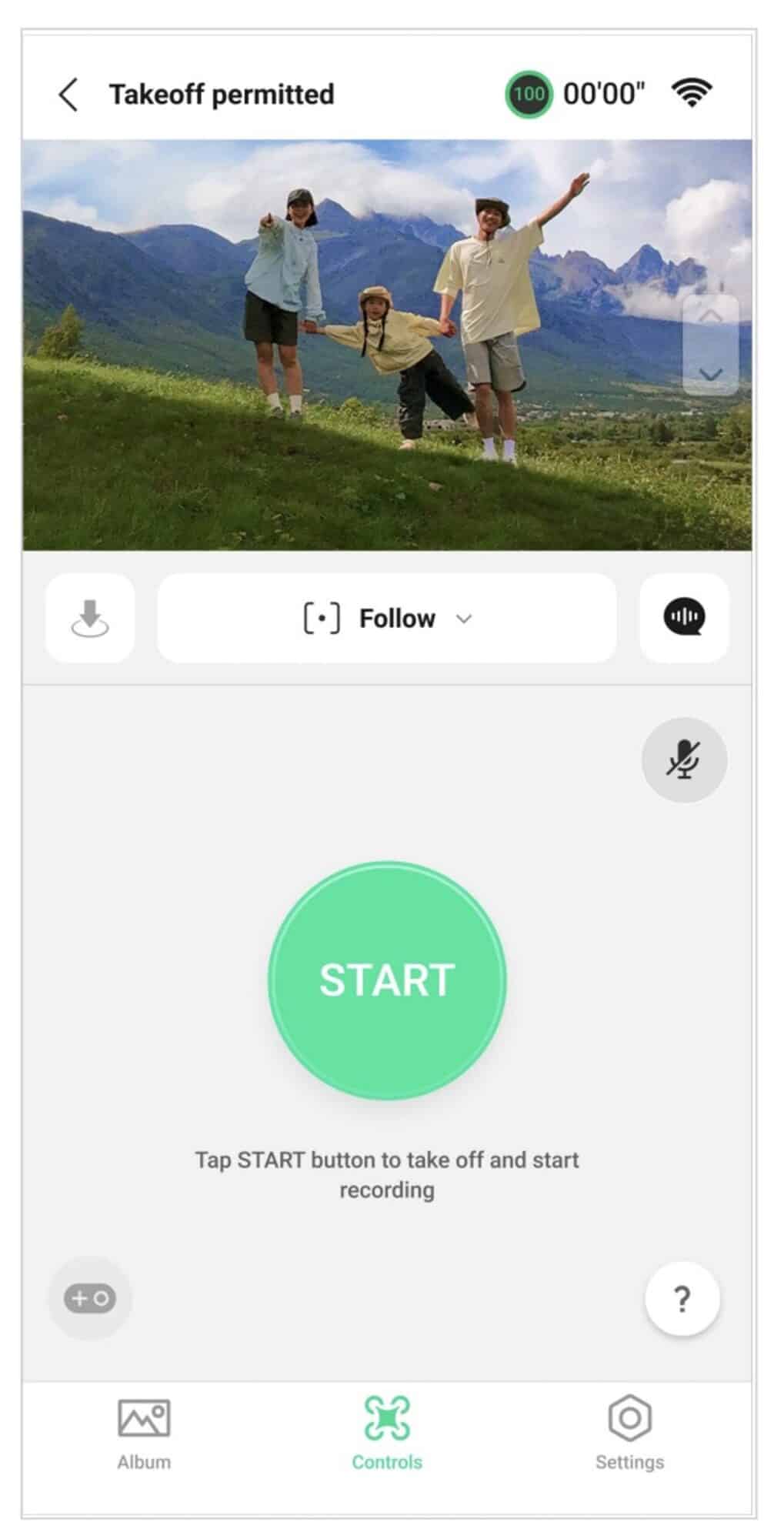

App screen with a large green START button above a family in a mountain meadow.

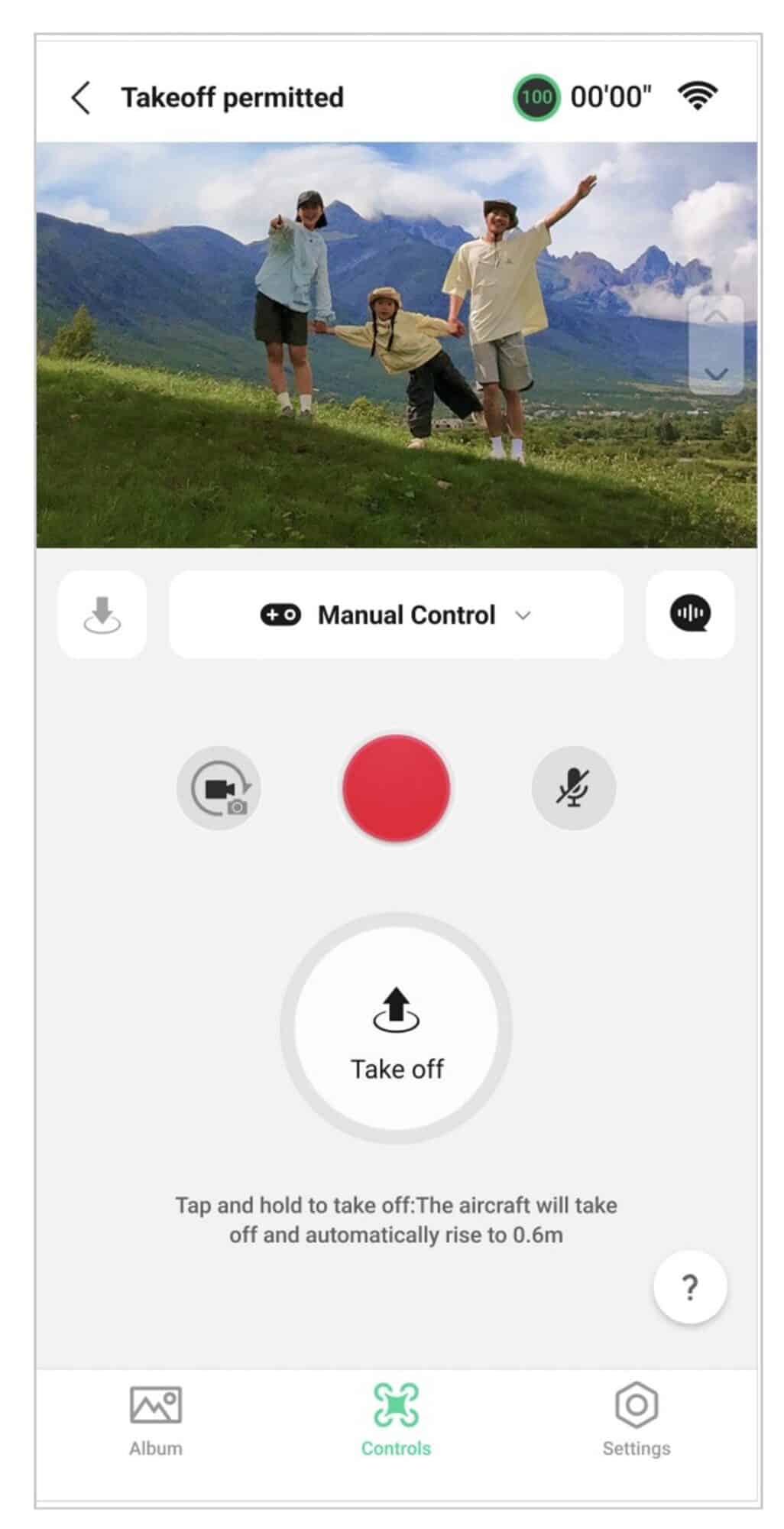

App screen in Manual Control with the take off button and record shutter.

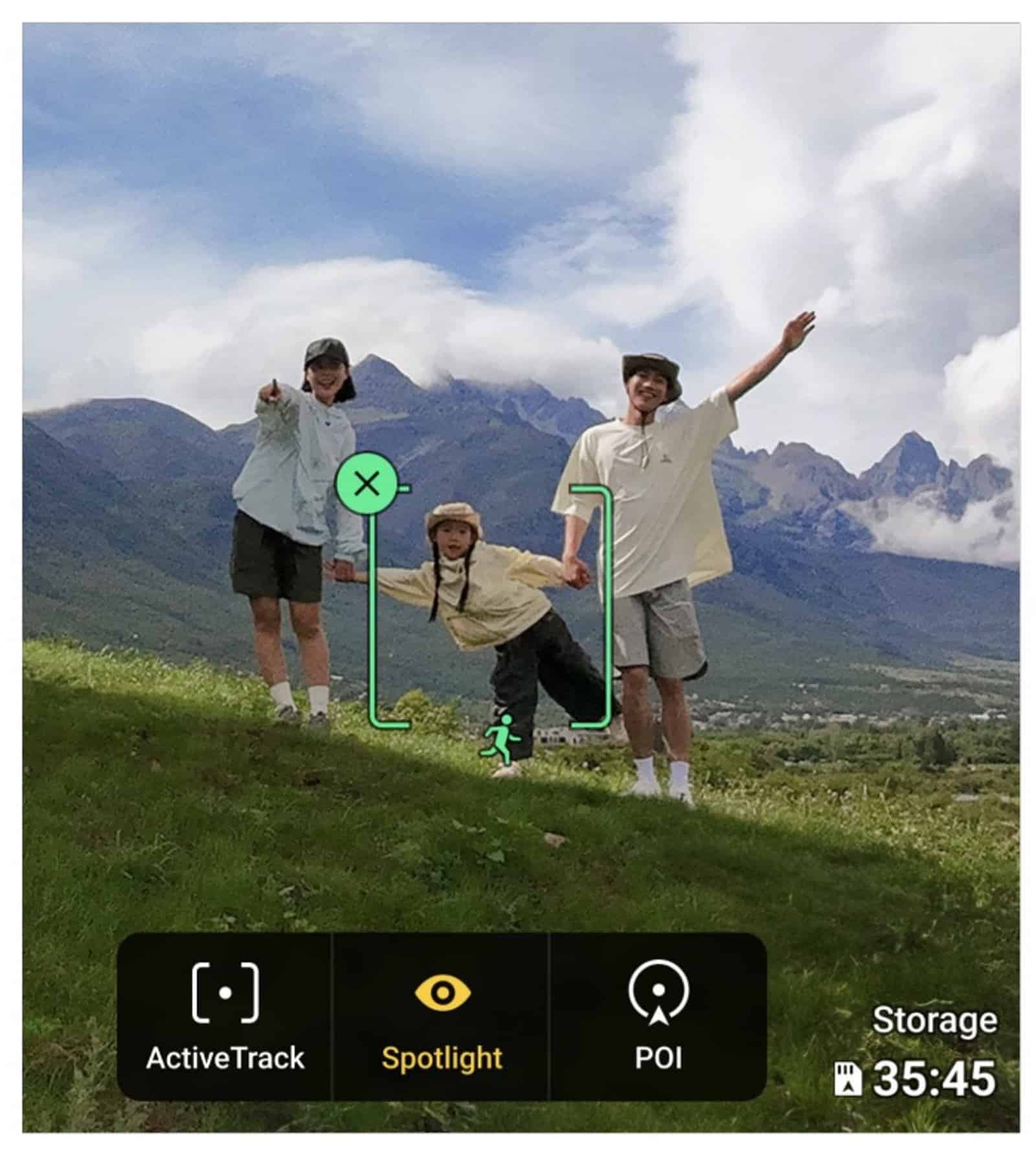

Camera view with ActiveTrack, Spotlight and POI buttons and a tracking box on a child.

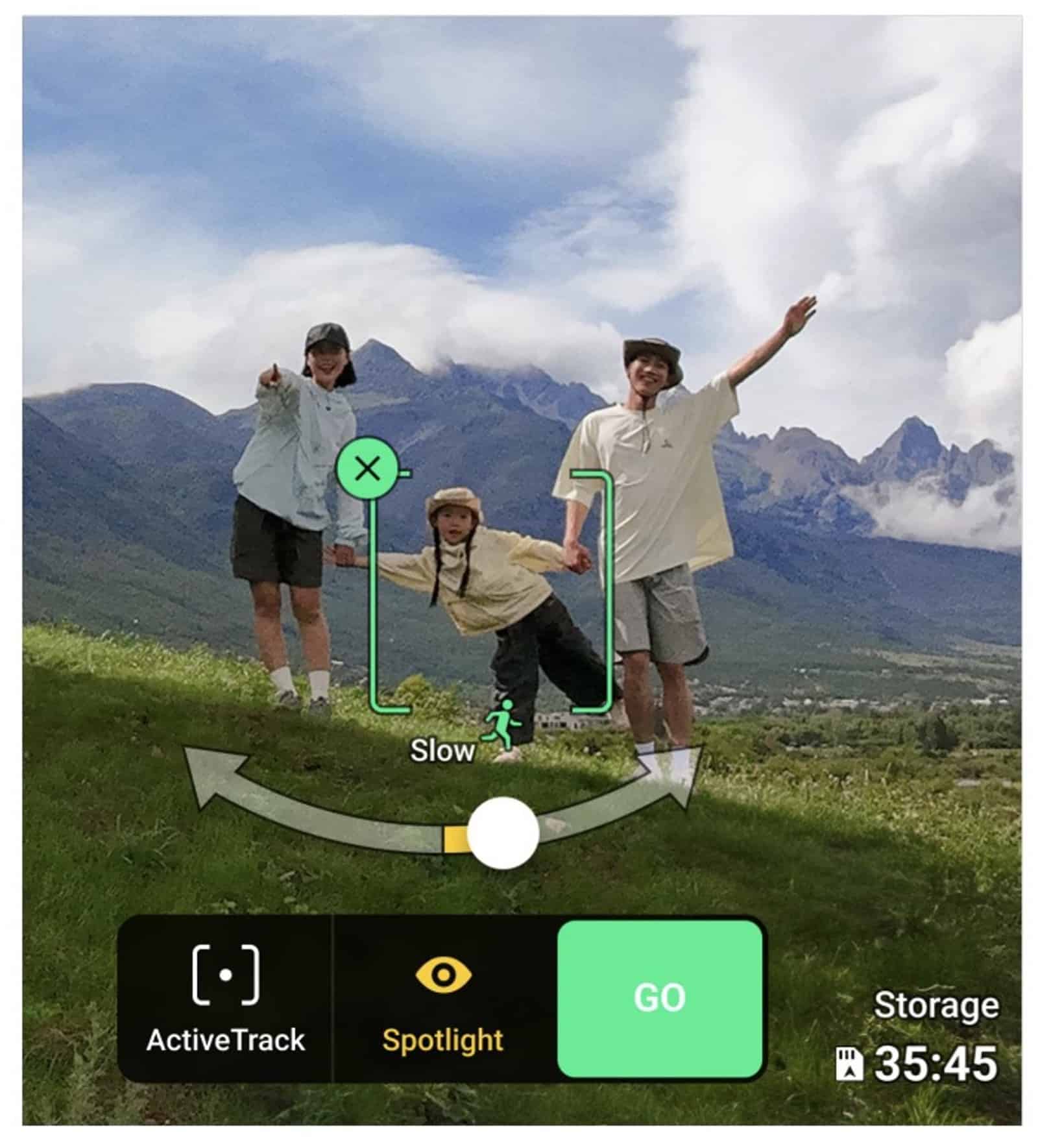

Tracking view with the speed dial set to Slow and a green GO button.

DroneXL’s Take

The DJI Neo represents a significant leap forward in the ultra-lightweight drone category. By adhering to C0 requirements while offering advanced features like FPV capabilities and intelligent flight modes, DJI is bridging the gap between toy drones and more professional setups. This aligns with the growing trend towards compact yet feature-rich drones we’ve been seeing in the industry.

The Neo’s multiple control options, from palm gestures to voice commands, showcase DJI’s commitment to making drone flight more accessible and intuitive. This could potentially open up creative aerial imaging to a broader audience, from casual users to aspiring FPV pilots.

What are your thoughts on the DJI Neo’s features and its positioning in the C0 drone market? Share your opinions in the comments section below.
