New DJI Zenmuse P1 and L1 payloads for DJI Matrice 300
Today at the INTERGEO Digital 2020 event in Germany, DJI will announce two new payloads for the DJI Matrice 300 series. The drone maker releases the DJI Zenmuse P1, a 45MP full-frame camera with three interchangeable prime lenses (24/35/50mm), and the DJI Zenmuse L1, the company's first LiDAR solution for aerial surveying. The Zenmuse L1 features a 20-megapixel camera with a 1-inch CMOS sensor and a mechanical shutter on a 3-axis stabilized gimbal. See DJI's official release below.
New DJI Zenmuse P1 and L1 payloads for DJI Matrice 300
DJI Unveils First Integrated Lidar Drone Solution And A Powerful Full-Frame Camera Payload For Aerial Surveying
New DJI Zenmuse P1 And DJI Zenmuse L1 Payloads Become The Drone Industry's Most Capable Solutions For Geospatial, Surveying, And Construction Professionals
DJI, the world leader in civilian drones and aerial imaging technology, today unveiled at INTERGEO, two new payload solutions for its flagship commercial drone platform Matrice 300 RTK, destined to serve the most demanding aerial surveying missions. The DJI Zenmuse P1 and DJI Zenmuse L1 are set to be game-changers for the industry, bringing more efficiency and new perspectives at an affordable cost without compromising the quality and accuracy of the data collected for precise aerial inspections and data collection missions.
“With these two new payloads, we are providing an all-integrated complete solution to our enterprise customers active in accurate geospatial data acquisition,” said Arjun Menon, Engineering Manager at DJI in the US. “Having a fully integrated capable and affordable Lidar seamlessly integrated into our best commercial drone is a dream that becomes reality for surveying, mapping and construction professionals. They will be able to see, cover and understand the geospatial context from a totally new perspective thanks to the high level of accuracy and quality of the data collected from these tools in the sky.”
DJI Zenmuse L1 – DJI's First Lidar Solution For Aerial Surveying
In the aerial surveying industry, Lidar technology plays a vital role in building accurate reality models. In low light situations, or in areas with heavy foliage where traditional drone-based photogrammetry methods would fall short, Lidar can provide quick, precise true-color point cloud models of complex structures. The Zenmuse L1 is DJI's first Lidar solution for aerial surveying, and a major breakthrough in democratizing Lidar technology by being easy to use and accessible.

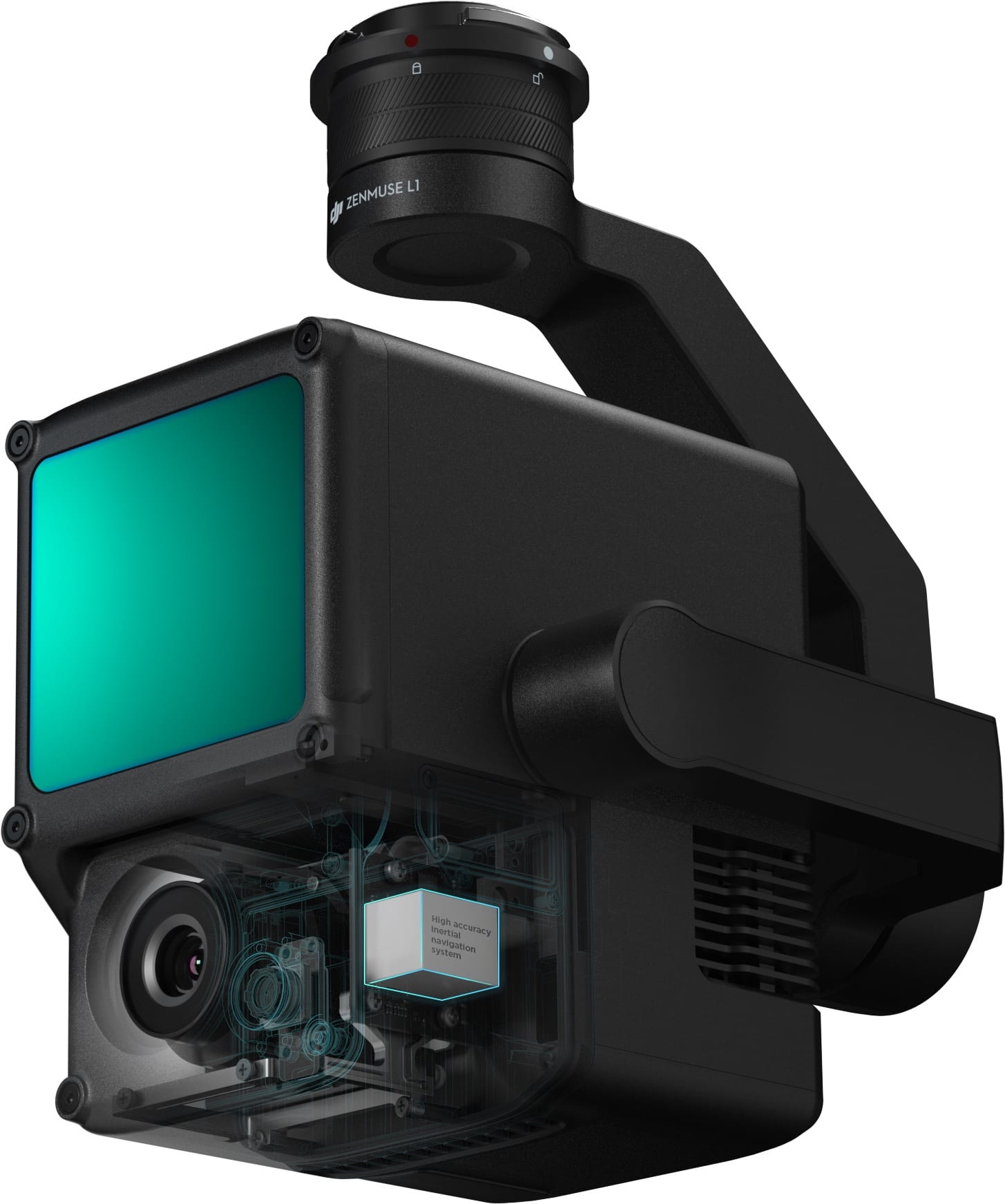

The Zenmuse L1 integrates a powerful yet ultra-lightweight LiVOX Lidar module with a 70° FOV, a high-accuracy IMU, and a 20-megapixel camera with a 1-inch CMOS sensor and a mechanical shutter on a 3-axis stabilized gimbal. The Zenmuse L1 can generate true-color point cloud models in real-time, or acquire a vast area (up to 2 km2) of point cloud data in a single flight. With a Point Rate of 240.000 points per second and a detection range of 450 meters, the ease and speed of capturing quality Lidar data is unprecedented. The module supports both Line Scan Mode and Non-repetitive Scanning Mode, a unique technology developed by Livox. This will provide full coverage of the area of interest in very short amounts of time, and allows the sensor to capture data in any direction, instead of along a defined plane.
When used with DJI's flagship commercial drone platform Matrice 300 RTK and DJI Terra surveying software, it becomes a complete and versatile solution that gives the user real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models. Thanks to its IP44 rating, The Zenmuse L1 can operate in rainy or foggy environments while the Lidar module's active scanning method enables flights in low light conditions.
The Livox Lidar's unique non-repetitive scanning process allows the sensor to capture data in any direction, which is critical for mapping applications. The Zenmuse L1 Lidar solution can easily penetrate vegetation canopies and foliage. Agriculture and forestry managers will benefit from insights such as canopy width, vegetation density, area, stock volume and growth trends. Emergency responders can gather critical insights using true-color point clouds, gain situational awareness and capture forensic intelligence in real time for informed decision-making. The Zenmuse L1 can be used throughout asset-intensive, high-risk and hazardous environments, including in oil and gas, mining, infrastructure, telecommunications and power.
DJI Zenmuse P1 – Full Frame Photogrammetry – The New Benchmark For Aerial Surveying
Over the past few years, DJI Enterprise has dedicated significant efforts and commitments to professionals from the Architecture, Engineering, Construction and Surveying industries. Experts have adopted Drone Technology and naturally turned to the DJI P4 RTK's capability to capture data for centimeter-level accurate maps and models for a range of applications, from cadastral surveys to natural heritage site models.

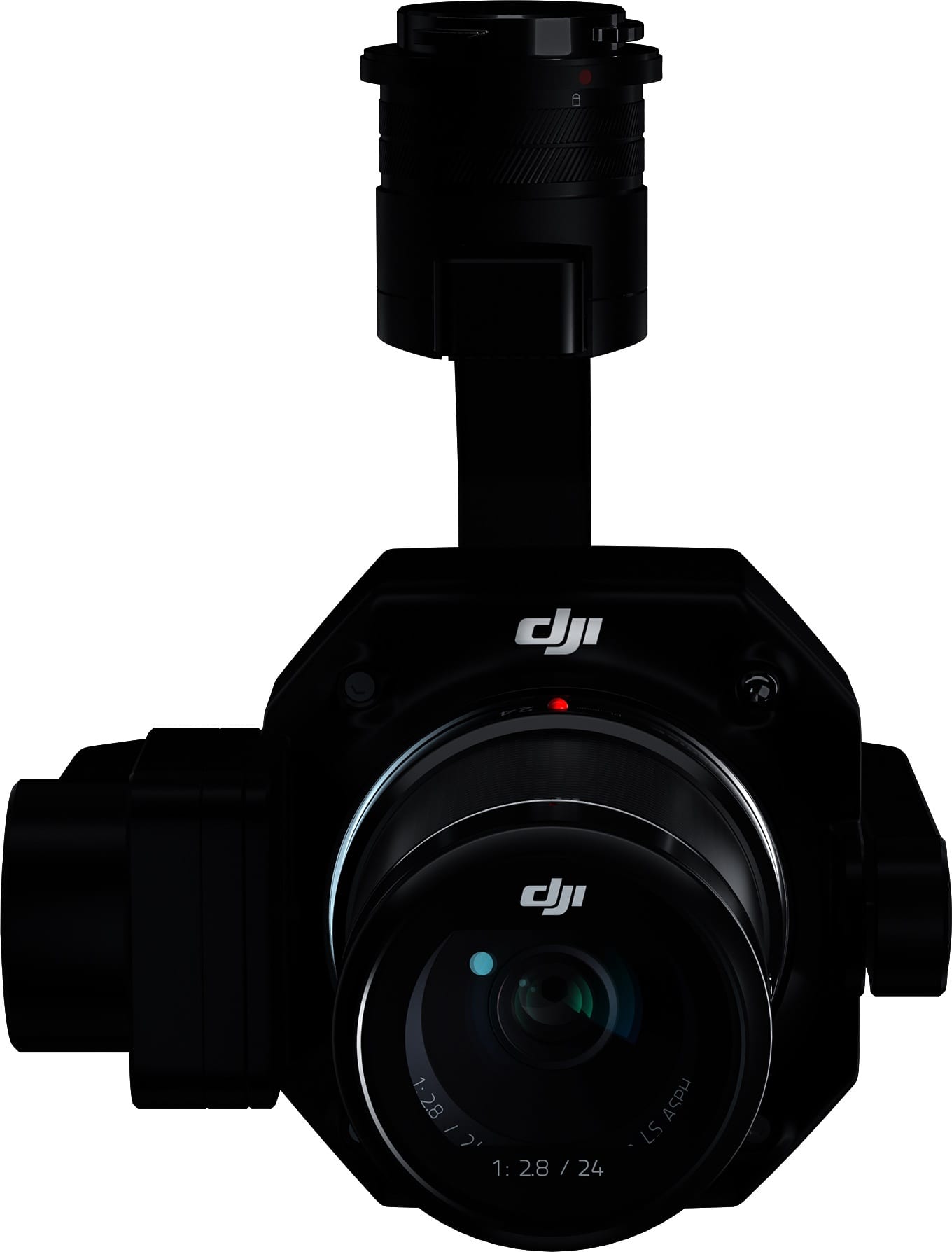

Today, DJI pushes the boundaries of its vision for the industry by elevating aerial photogrammetry to an unprecedented level of accuracy, performance, and high-precision work. The new DJI Zenmuse P1 is the most powerful DJI camera payload dedicated to geospatial data acquisition. It integrates a 45-megapixel full-frame low-noise high-sensitivity sensor offering flexible viewing with interchangeable 24/35/50mm fixed-focus lenses on a 3-axis stabilized gimbal.
The DJI Zenmuse P1 provides high accuracy without Ground Control Points (3cm horizontally / 5cm vertically) and high efficiency as it is able to cover 3 km2 in a single flight.
Equipped with a mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with real-time position and orientation compensation technology.
The Smart Oblique Capture feature dramatically improves efficiency, mimicking a multi-sensor oblique camera, and only capturing the photos essential to the reconstruction at the edge of the mapping areas.
Adopting the DJI Zenmuse P1 will offer a new edge to photogrammetry professionals, enabling them to work faster thanks to its unique features. They will be enabled to conduct complex missions requiring 2D orthomosaics, collect oblique images for 3D modeling with centimeter-level accuracy, and acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering and more. Teams will also be able to work on real-time mapping missions gathering geographic information using DJI Terra.
Price and Availability
The DJI Zenmuse L1 and DJI Zenmuse P1 are available for pre-order from official DJI Enterprise dealers worldwide and will start shipping in early 2021. Pricing details and information on where to buy will be available at your local DJI Enterprise Partners.
For the DJI Enterprise dealer map, click here.
