DJI Mic 2: Detailed Specs and Photos Leaked Ahead of Launch

Exciting New Features of the Upcoming DJI Mic 2 Revealed

The tech world is buzzing with excitement as new details and photos of the DJI Mic 2 have been leaked over the weekend. Thanks to Igor Bogdanov, aka Quadro News, we now have a clearer picture of what to expect from this second-generation microphone from DJI. With its anticipated release possibly as early as January 17th, the DJI Mic 2 is already generating considerable interest.

READ: DJI SET TO UNVEIL POCKET-SIZED PRO AUDIO DEVICE ON JAN. 17TH

The newly leaked specifications showcase the DJI Mic 2's impressive capabilities. It features an omnidirectional polar pattern and a frequency response ranging from 50 Hz to 20 kHz with a low cut-on, and 100 Hz to 20 kHz with a low cut-off. Its maximum sound pressure level (SPL) is a robust 120 dB SPL, and the max input level at the 3.5 mm jack is -6 dBV with less than 0.1% THD. The equivalent noise level is quite low at 21 dBA, ensuring clear audio capture.

In terms of hardware, the DJI Mic 2 comes with a charging case that measures 116×41.5×59.72 mm and weighs 200 g. The case is powered by a 3250 mAh Li-ion battery, providing approximately two charging cycles for two transmitters and one receiver simultaneously. The charging time for the case is around 2 hours and 40 minutes.

Both the transmitter and receiver of the DJI Mic 2 are compact and lightweight, each weighing 28 g. They operate on GFSK 1 Mbps and 2 Mbps wireless modes with an operating frequency range of 2.400-2.4835 GHz. Each unit is powered by a 360 mAh Li-ion battery, offering up to 6 hours of operating time. The charging time for these units is 70 minutes.

Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch 2

DJI Mic 2 Advanced Technical Specifications

Max Transmission Distance and Battery Life: The DJI Mic 2 boasts an impressive max transmission distance of 250 m (FCC) and 160 m (CE). This feature, combined with its long battery life, makes it ideal for a wide range of recording environments.

Bluetooth Capabilities: The device also supports Bluetooth BR/EDR protocols, enhancing its connectivity options.

The leaked specifications and photos of the DJI Mic 2 indicate a significant upgrade over its predecessor, with advanced features tailored for professional audio recording. Its compact design, long battery life, and powerful transmission capabilities make it a promising tool for content creators and professionals alike. As we eagerly await the official launch, the DJI Mic 2 is poised to set a new standard in portable audio recording.

Please find below the most recent information, specs, and additional photos of what is rumored to be the new DJI Mic 2.

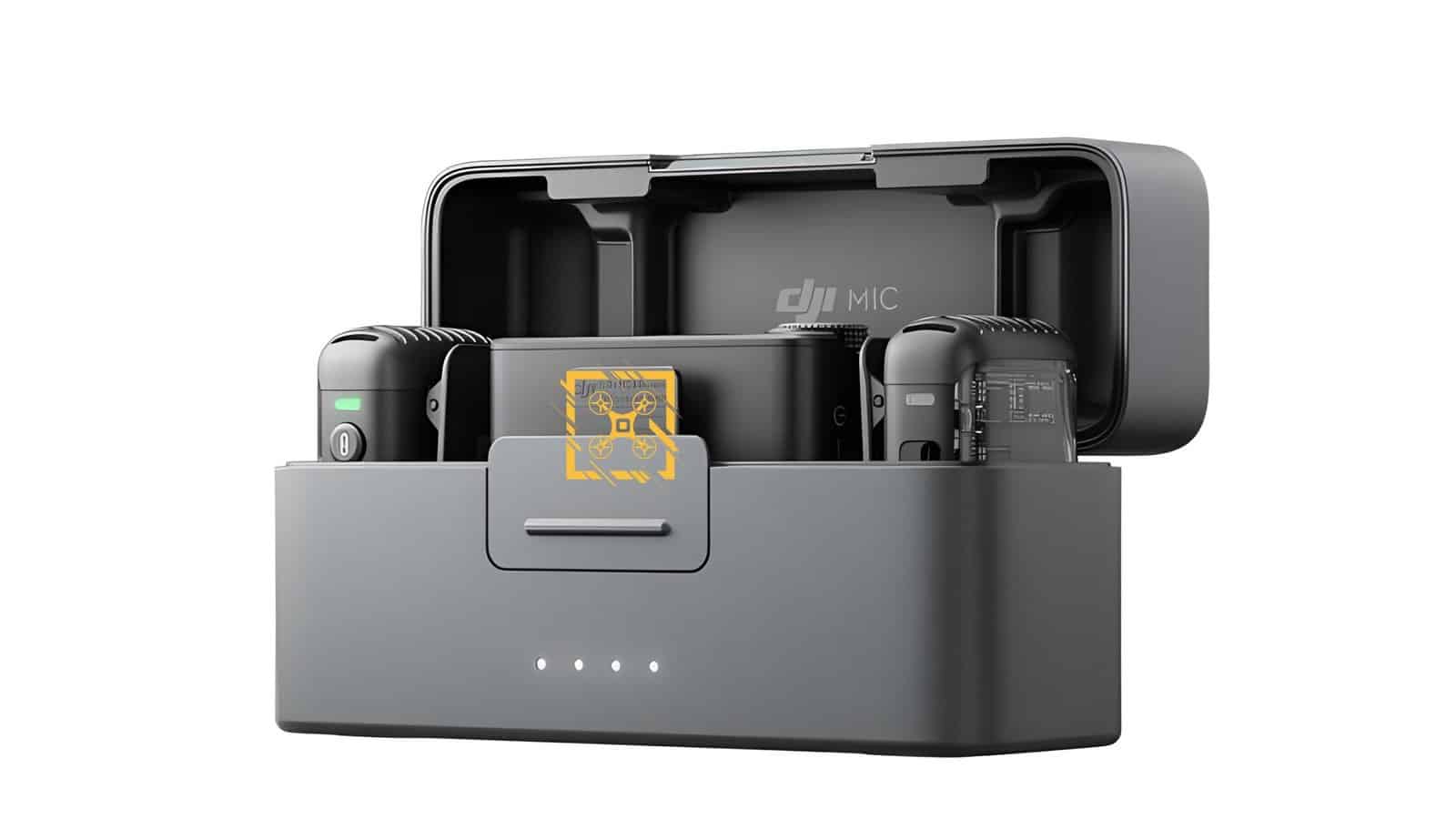

DJI Mic 2 Charging Case

  • Dimensions: 116×41.5×59.72 mm (L×W×H)
  • Weight: 200 g
  • Battery Type: 18650 Li-ion
  • Battery Capacity: 3250 mAh
  • Battery Energy: 11.7 Wh
  • Battery Voltage: 3.6 V
  • Charging Specification: 5 V, 1.5-3 A
  • Charging Temperature : 5° to 40° C (41° to 104° F)
  • Operating Temperature : 5° to 45° C (41° to 113° F)
  • Charging Time: 2 hours and 40 mins
  • Charging Cycles for TX and RX
  • Approx. two cycles when charging two TXs and one RX at the same time

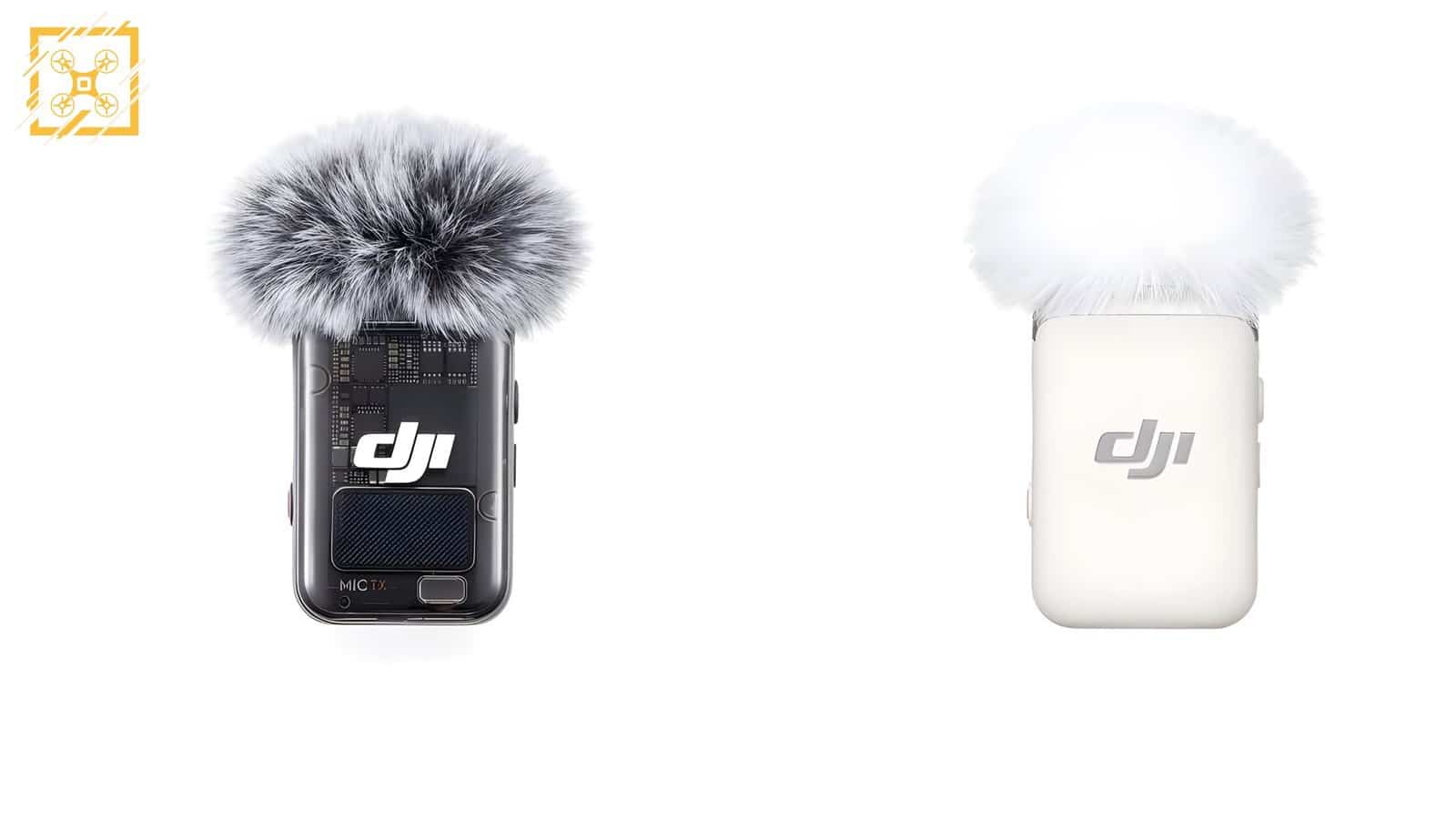

DJI Mic 2 Transmitter

  • Dimensions: 46.06×30.96×21.83 mm (LW×H)
  • Weight: 28 g
  • Wireless Mode: GFSK 1 Mbps and 2 Mbps
  • Equivalent Isotropic Radiated Power (EIRP) : Wireless Mode Operating Frequency: 2.400-2.4835 GHz
  • Bluetooth Protocol: BR/EDR
  • Bluetooth Operating Frequency: 2.400-2.4835 GHz
  • Bluetooth Transmitter Power (EIRP) :
  • Battery Type : Li-ion
  • Battery Capacity: 360 mAh
  • Battery Energy: 1.39 Wh
  • Battery Voltage: 3.87 V
  • Charging Temperature: 5° to 45° C (41° to 113° F)
  • Operating Temperature: -10° to 45° C (14° to 113° F)
  • Charging Time: 70 mins
  • Operating Time: 6 hours

DJI Mic 2 Receiver

  • Dimensions: 54.20×28.36×22.49 mm (LW×H)
  • Weight: 28 g
  • Wireless Mode: GFSK 1 Mbps and 2Mbps
  • Equivalent Isotropic Radiated Power (EIRP) :
  • Operating Frequency: 2.400-2.4835 GHz
  • Battery Type : Li-ion
  • Battery Capacity: 360 mAh
  • Battery Energy : 1.39 Wh
  • Battery Voltage: 3.87 V
  • Charging Temperature: 5° to 45° C (41° to 113° F)
  • Operating Temperature: -10° to 45° C (14° to 113° F)
  • Charging Time: 70 mins
  • Operating Time: 6 hours
  • Polar Pattern : Omnidirectional
  • Frequency Response:
    • Low Cut Off: 50 Hz – 20 kHz
    • Low Cut On: 100 Hz – 20 kHz
  • Max Sound Pressure Level (SPL) : 120 dB SPL
  • Equivalent Noise : 21 dBA
  • Monitor Interface Output Power: Max Output 12 mW@1 kHz, 32 0
  • Max Transmission Distance : 250 m (FCC), 160 m (CE)
Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch
Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch
Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch
Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch
Dji Mic 2: Detailed Specs And Photos Leaked Ahead Of Launch 3
