Bat-Inspired Drone Navigates Smoke, Snow, Darkness

A team at Worcester Polytechnic Institute just pulled off something that sounds simple until you actually think about what cameras and lidar can’t do. They built a palm-sized quadrotor that flies by listening, the same way a bat does, and they got it to dodge obstacles in fog, snow, and pitch darkness with a success rate between 72% and 100% across 180 tests.

For me, what makes this a real story is not the bat metaphor. It’s that the team published their results in Science Robotics, which is one of the few venues where a research drone claim actually gets vetted before it shows up in a press release. Most “bio-inspired drone” announcements I read are concept videos with no peer review behind them. This one isn’t.

What they actually built

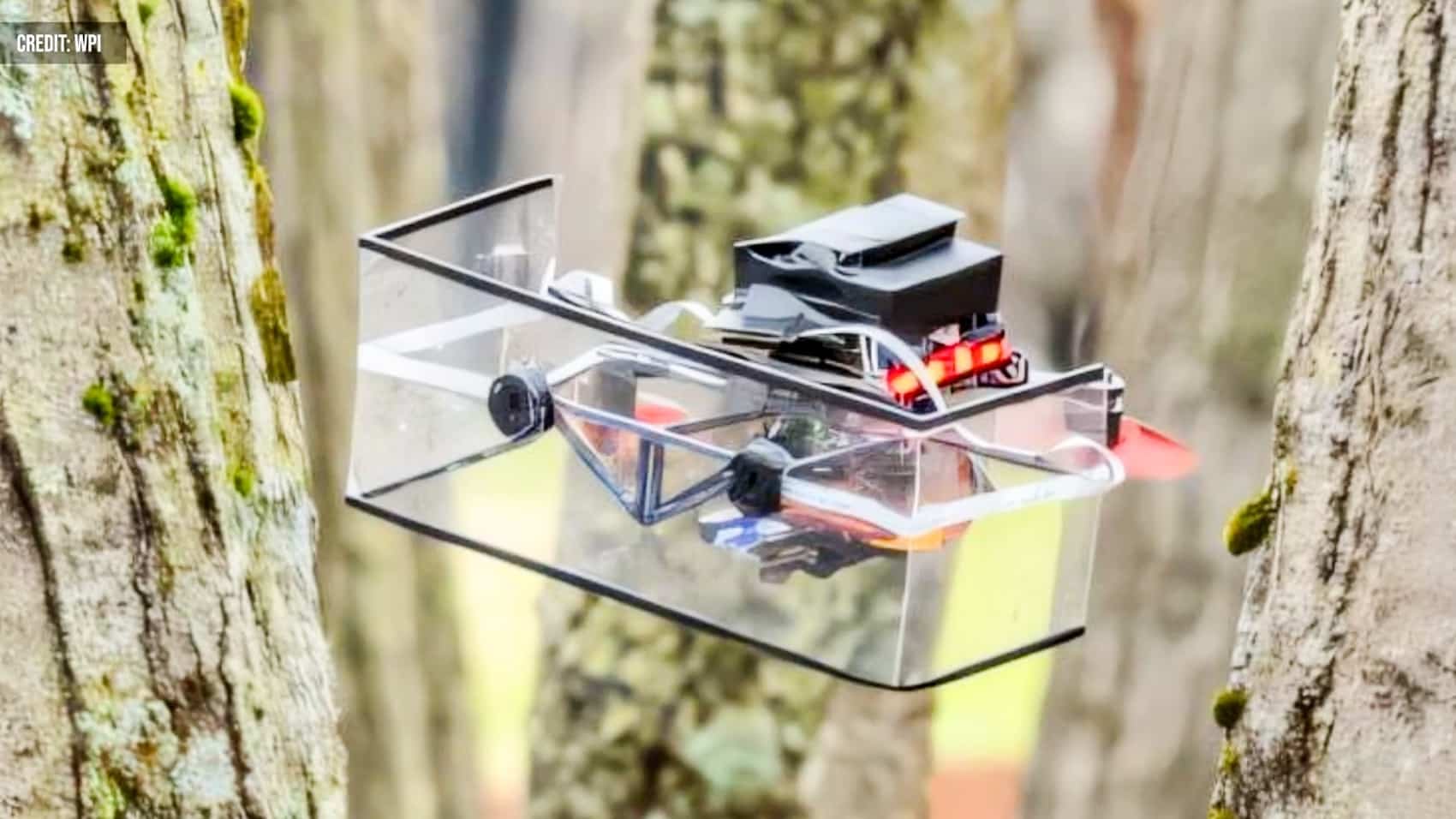

The drone is about 6 inches wide (15 cm) and weighs roughly 1 pound (450 grams). It’s an X-shaped quadrotor that the team customized with an ultrasound sensor array and an acoustic shield.

The shield is the unglamorous part of the engineering, and it’s also the part that makes the rest possible. Propellers are loud. Putting a microphone next to them and asking it to hear faint echoes is like trying to read a whisper next to a leaf blower. The shield dampens the prop noise enough that the ultrasound system can actually pick up the bounce-back from obstacles.

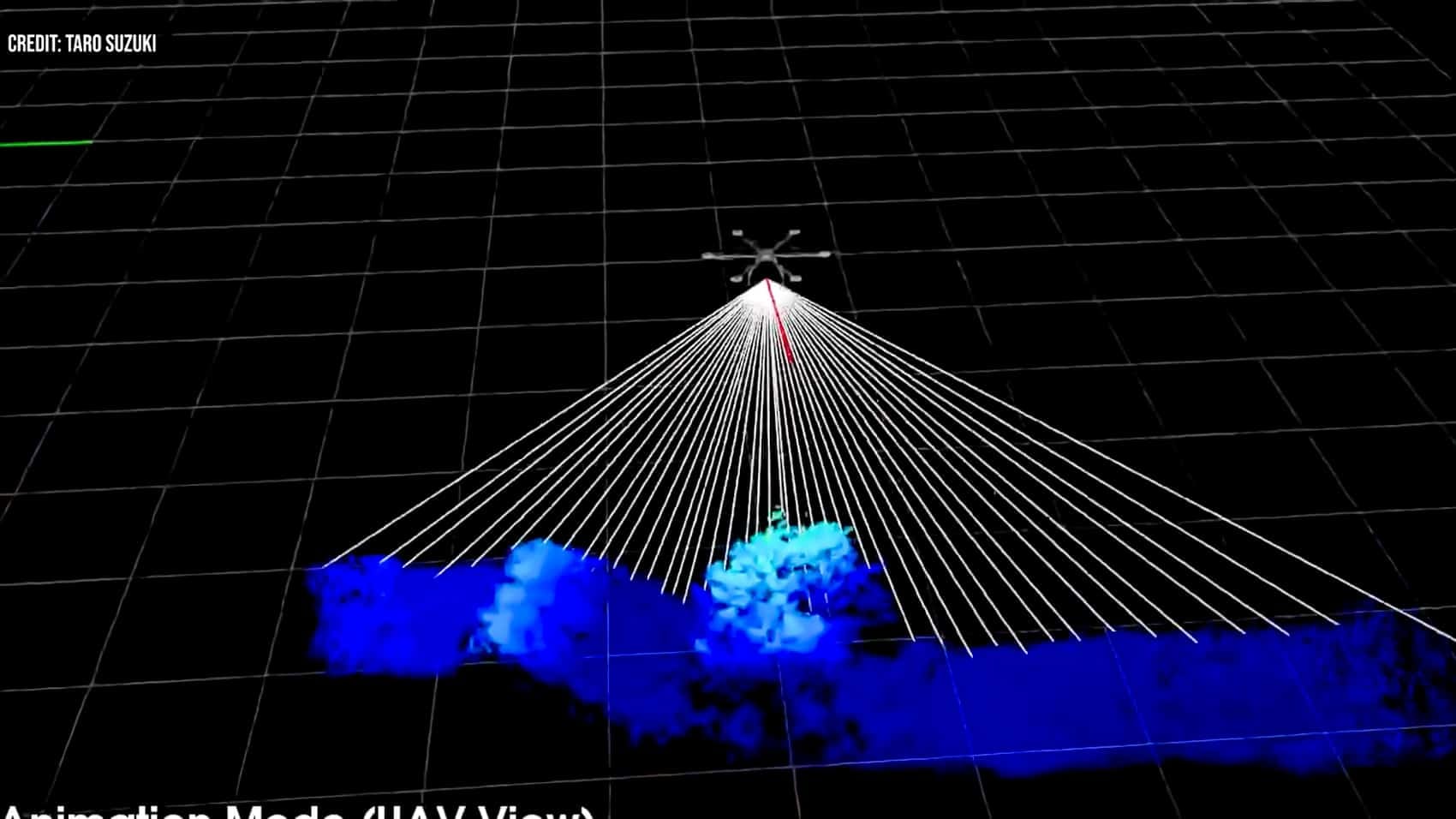

The processing side is where the bat analogy starts to earn its keep. The team built a neural network they call Saranga, and they trained it to interpret weak ultrasound echo patterns roughly the way a bat brain interprets sound.

Lead researcher Nitin Sanket, an assistant professor in the Department of Robotics Engineering at WPI, has been working in this space for a while. His co-authors include three of his students and Richard Przybyla from TDK InvenSense, which is the sensor side of the partnership.

Flight time is currently about five minutes per charge. That’s short, and Sanket said it directly in the announcement: “In a real search-and-rescue mission, a few more seconds of flight time could mean the difference between life and death.” I respect that he didn’t dress it up. Five minutes isn’t a solved drone, it’s a working prototype.

Why this matters more than the usual bio-inspired headline

Almost every search-and-rescue drone I’ve covered relies on a camera, a lidar puck, or both. They work great in clean air with good light. They fall apart in smoke, dust, dense fog, heavy snow, or a collapsed building where dust is everywhere. That’s exactly the environment where you actually want a drone, and it’s where most of them go blind.

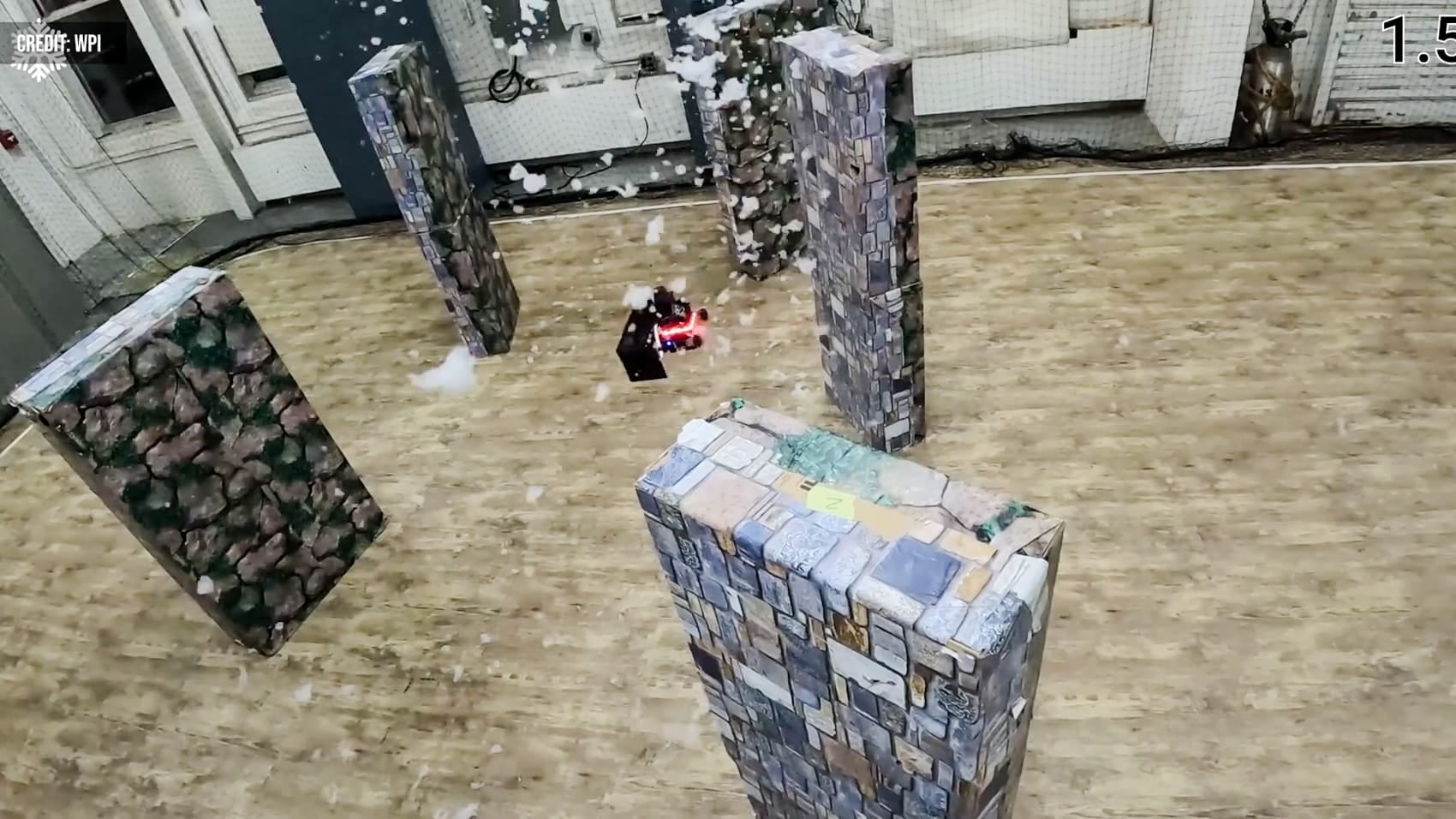

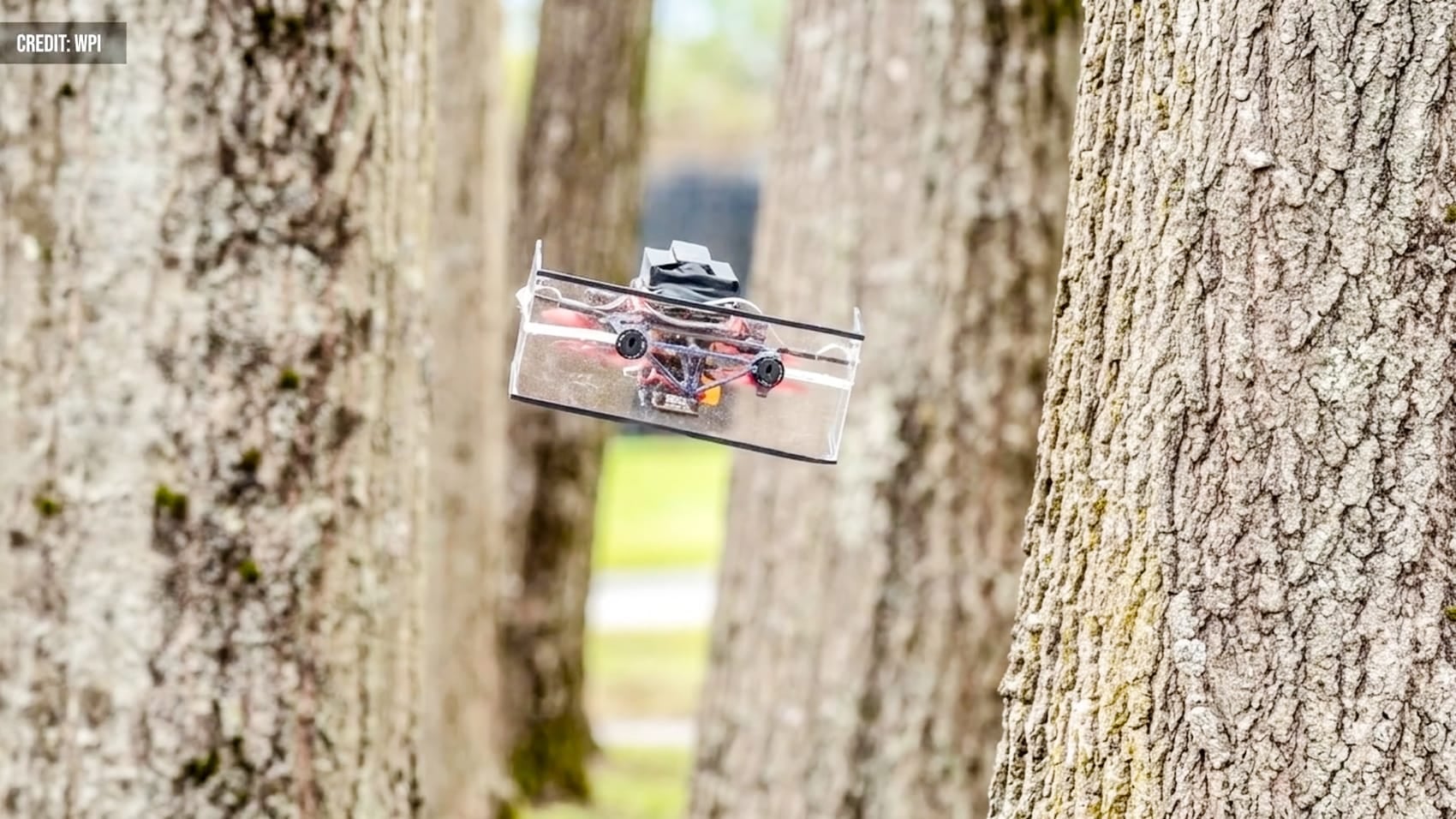

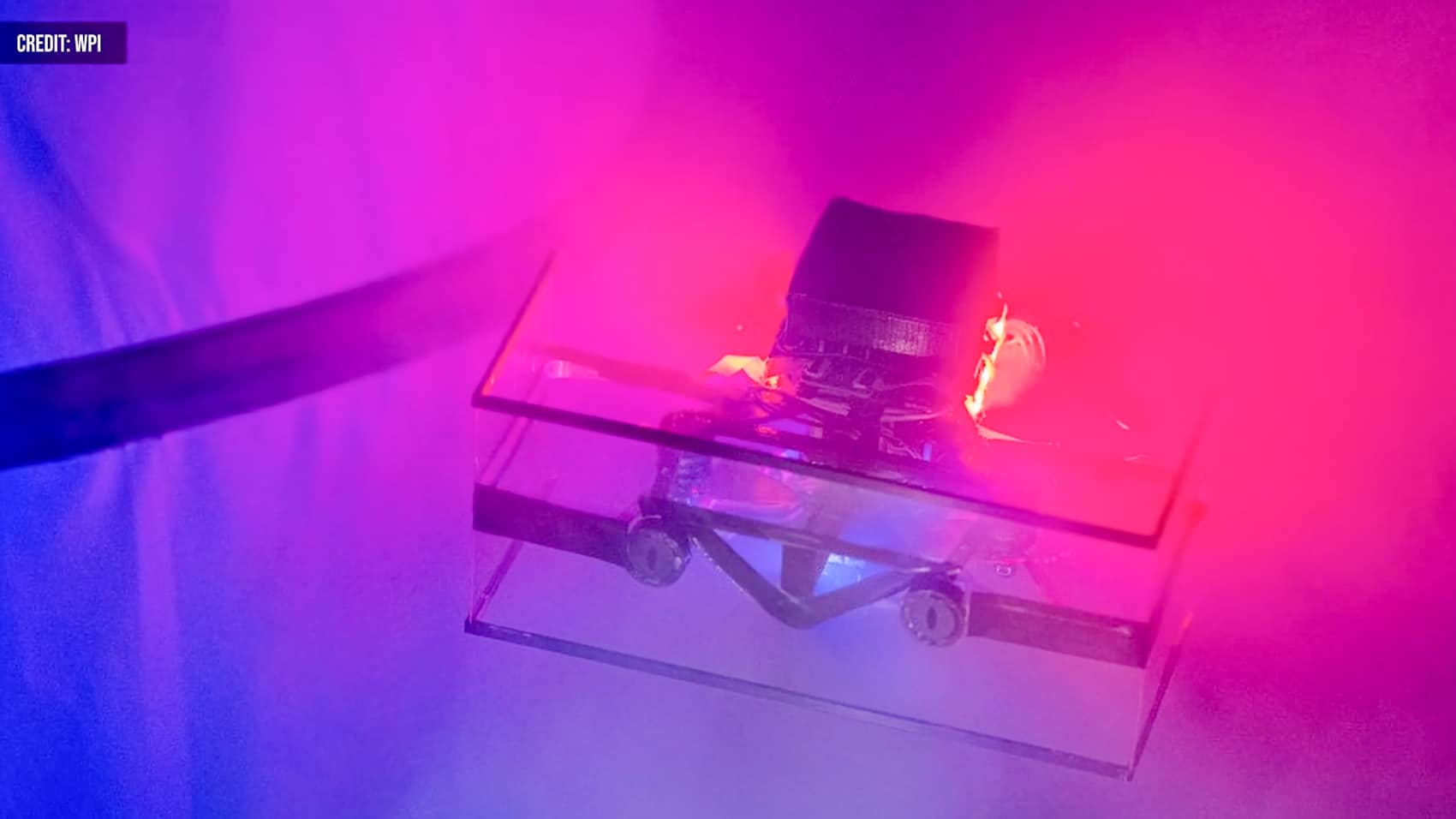

Ultrasound doesn’t care about visibility. The WPI team tested the drone in a wooded area, in a dark indoor lab with black obstacles and transparent plastic, and through machine-generated fog and snow.

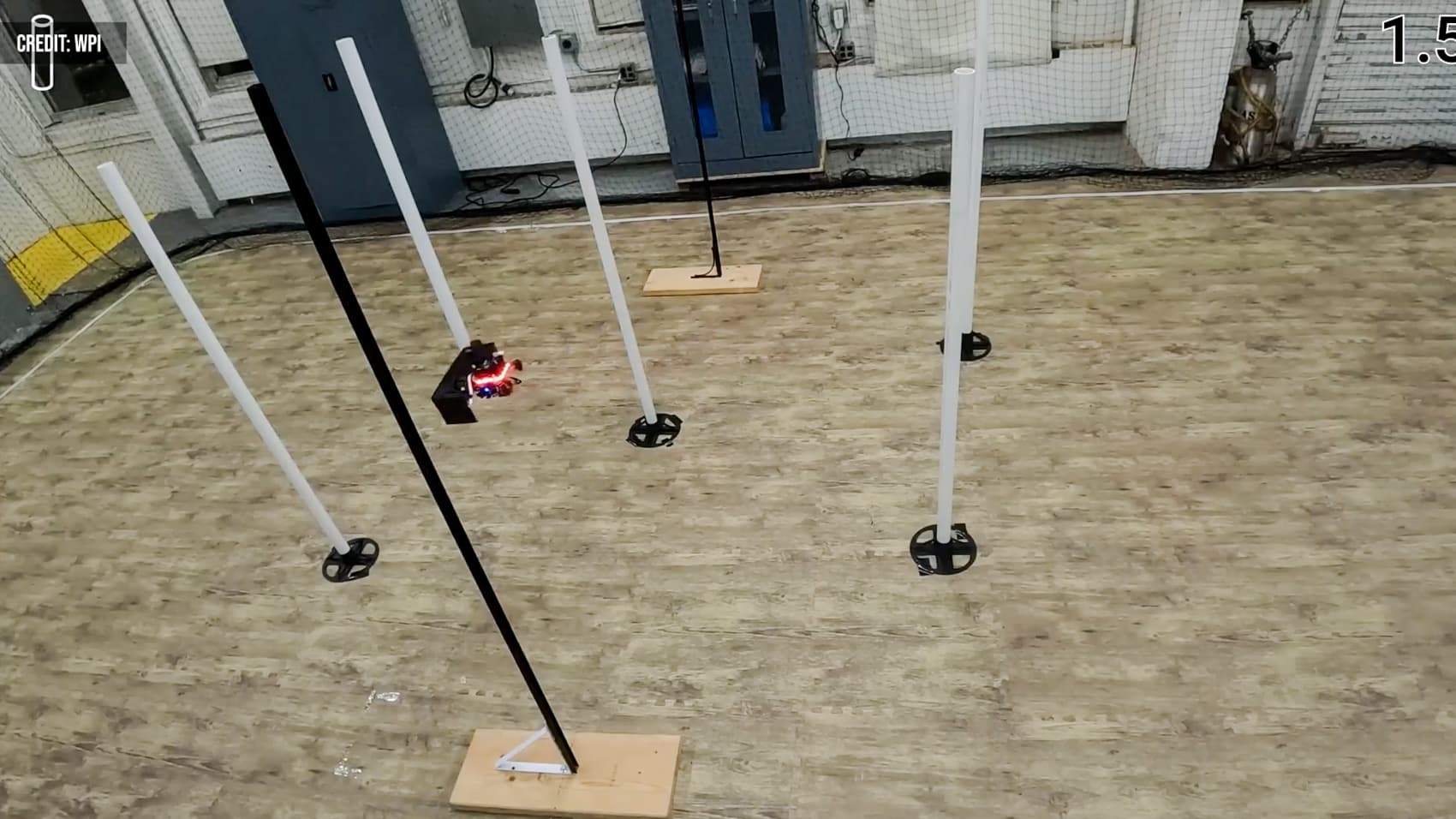

The 72% to 100% success range comes from those 180 trials. They were honest about the weak spot too: thin objects like metal poles and tree branches were harder for the system to detect than larger shapes. That tracks with how echolocation works in nature. Bats are not flawless either.

The TechXplore writeup of the Science Robotics paper includes a claim I want to flag because it’s load-bearing if it holds up at scale. The team says their approach can “reduce power by 1,000 times, weight by 10 times, and cost by 100 times compared to current solutions.” Those are comparisons to existing sensor stacks, not absolute numbers.

I’d want to see the full paper’s methodology before treating those multipliers as gospel, but if even half of them survive independent replication, it changes the math for swarm-style search operations.

How this compares to what’s already in the field

The closest commercial analog is what DJI is doing on the Mavic 4 Pro with its hybrid optical-plus-LiDAR sensor stack. The Mavic 4 Pro carries six fisheye low-light obstacle sensors that work down to 0.1 lux of ambient light, which is roughly the brightness of a clear night under a quarter moon.

Below that threshold, the forward-facing LiDAR module housed in the front right arm takes over, with a measurement range of 0.5 to 25 meters and a 60° by 60° field of view. The result is a drone that can keep avoiding obstacles at speeds up to 40 mph (64 km/h) in conditions where most consumer drones are flying blind.

That’s the state of the art on a production quadcopter today, and it’s genuinely impressive. But it’s still photons. The Mavic 4 Pro’s optical sensors need that 0.1 lux of light, and the LiDAR needs a line of sight that smoke, fog, dust, and snow all degrade in different ways. Pulse-based LiDAR can punch through some particulate, but in a thick smoke column or a heavy snowstorm, return signals get noisy fast.

That’s the gap the WPI work is aiming at. Not replacing the DJI-class obstacle stack, layering a different physics on top of it for the conditions where photons stop working.

A 6-inch ultrasound flyer with five minutes of endurance isn’t clearing a building under tactical conditions. It is, potentially, going into a collapsed mine, a smoke-filled stairwell, or a cave system where the operator can’t see and the drone can’t either, unless it’s listening.

The honest read on the timeline

As Thomas Net reported, this is a research prototype. There’s no announced commercial partner, no spinout company, no pricing, no launch window. NSF funded the work, which means it’s federally backed academic research at the stage where the next step is usually more funding, more tests, and a longer paper.

Realistic timeline to anything a first responder could buy is years, not months, and that’s if a manufacturer picks it up. The sensor and the neural net are the transferable assets here. A larger drone OEM could license the perception stack and bolt it onto a longer-endurance platform faster than the WPI lab could turn their 6-inch prototype into a product.

DroneXL’s Take

Here’s what I find genuinely significant about this one. The drone industry keeps treating “all-weather autonomy” as a software problem you can solve by stacking more cameras and better AI on the same blind hardware.

WPI is doing something less flashy and more honest. They’re picking a sensor that works when light fails, dealing with the brutal noise problem head-on with a physical shield, and using machine learning to interpret a messy signal instead of to paper over a missing one.

Five minutes of flight is the obvious gating issue, and they’d be the first to tell you. But the perception stack is what could end up in a fleet of much bigger drones a few years from now, doing the jobs current platforms can’t.

Photo credit: Worcester Polytechnic Institute, DJI
