Waiv Robotics Unveils Autonomous VTOL Landing System for Ships

Waiv Robotics, a London-based maritime tech startup, has unveiled a gyro-stabilized platform that enables fully autonomous takeoff and landing of VTOL drones on moving vessels at sea, as reported by The Robot Report.

The system works with existing drones without requiring any hardware or software modifications, addressing one of the biggest barriers in maritime drone operations.

Backed by $7.5 million in seed funding, the patent-pending technology allows reliable drone recovery even in challenging sea states from workboats as small as 10 meters. This development could significantly expand the use of drones in offshore energy, maritime security, inspection, search and rescue, and logistics.

The Technical Challenge at Sea

Operating drones from vessels presents unique difficulties compared to land-based operations. A ship deck moves constantly in six degrees of freedom: pitch, roll, yaw, surge, sway, and heave.

Waves, wind, and vessel motion create a dynamic, unpredictable landing surface. Salt spray adds slippery conditions and long-term corrosion risks, while traditional solutions have been limited to calm waters or required skilled human pilots constantly on board.

These constraints have slowed widespread adoption of drones in maritime environments. Many offshore operators still hesitate to deploy UAVs regularly because reliable launch and recovery remains difficult, especially from smaller vessels.

Technical Aspects of Waiv Robotics System

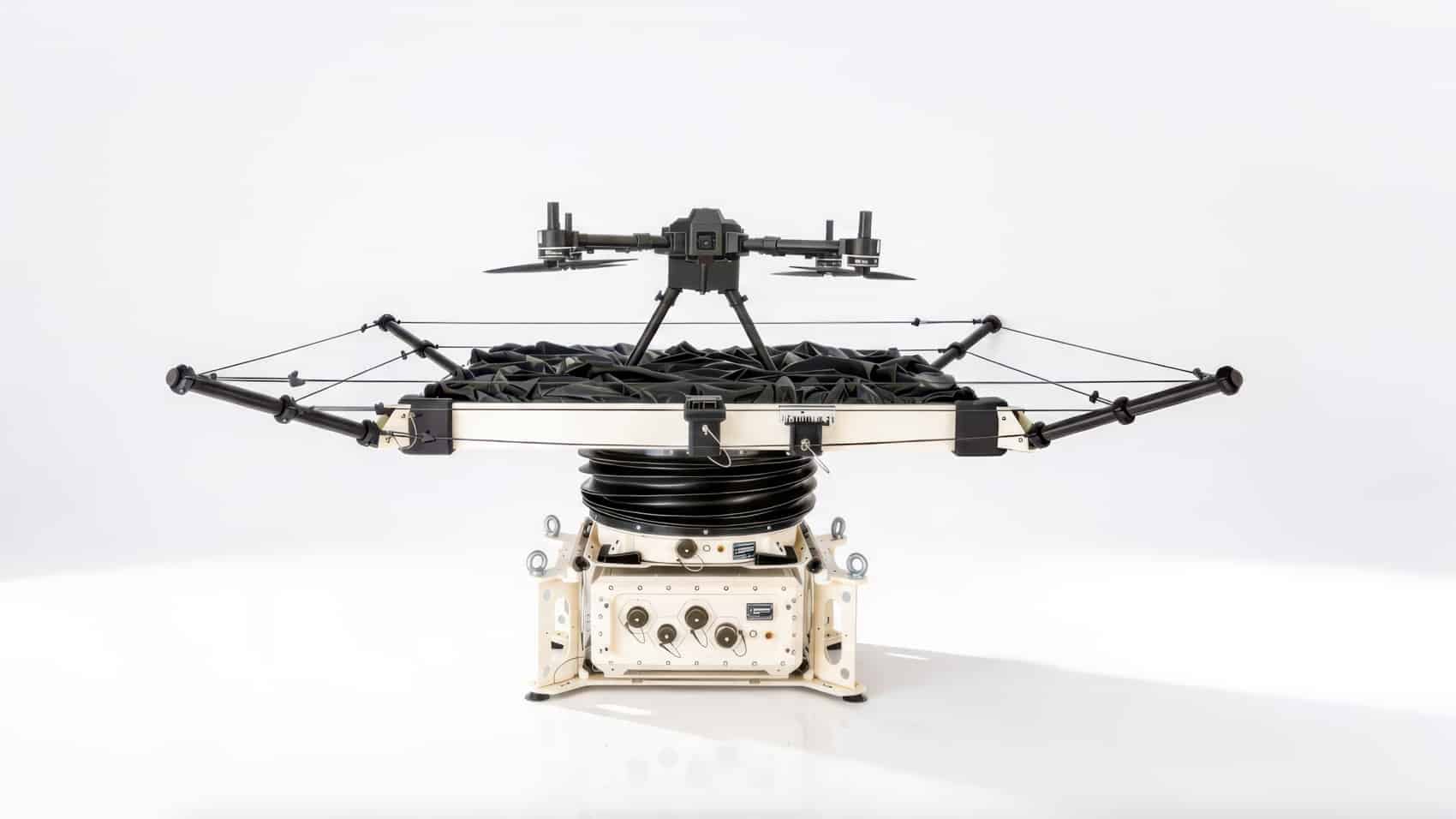

Waiv Robotics’ solution centers on a complete infrastructure package rather than modifying the drone. The core is a gyro-stabilized active landing platform that maintains a level surface regardless of vessel movement.

The system uses AI-driven predictive algorithms that analyze real-time motion data to forecast deck position. During the final approach, the platform interfaces with the drone’s existing remote control system and effectively “takes over the sticks,” guiding the UAV to a precise landing without needing an expert pilot on the vessel.

Upon contact, an impact absorption system cushions the forces of landing. A patent-pending catch-lock-release mechanism then securely locks onto the drone’s landing skids, preventing bounce, sliding, or rollover while the vessel continues moving. The lock can be released remotely for takeoff.

Key specifications of the system include:

• Compatibility: Universal design works with any VTOL platform — multicopters, fixed-wing VTOLs, or helicopter configurations — from any manufacturer.
• Payload capacity: Currently supports drones up to 15 kg, with future versions planned for lighter 3 kg systems and heavier 100–300 kg platforms.
• Vessel size: Optimized for workboats as small as 10 meters long.
• Operation: Full autonomous cycle (takeoff, landing, and secure capture) in high sea states.

This “drone-agnostic” approach is particularly valuable because operators can continue using their current fleet without expensive retrofits, new certifications, or cybersecurity concerns that often come with hardware modifications.

Practical Applications and Industry Impact

The technology opens new possibilities across multiple sectors. Offshore wind farm operators can perform more frequent and safer inspections of turbines and platforms. Oil and gas companies gain improved monitoring capabilities for remote assets. Maritime security and defense forces can deploy surveillance and reconnaissance drones more effectively from smaller patrol vessels.

Something important to remember is that our friends at DJI optimized their latest enterprise flagship, the Matrice 400 to land safely on moving boats.

Search and rescue organizations benefit from rapid response capabilities in coastal and open-ocean emergencies. Commercial operators could explore new logistics use cases, such as cargo transfer between ships or supply delivery to remote installations.

By turning standard workboats into mobile drone hubs, Waiv Robotics lowers the infrastructure barrier significantly. Instead of requiring large dedicated mother ships or heavy “drone-in-a-box” systems, operators can equip existing vessels with this platform and immediately expand their operational envelope.

DroneXL’s Take

Here’s what matters: Most innovation in the drone industry focuses on the aircraft — better batteries, sensors, or autonomy features. Waiv Robotics took the smarter route by solving the infrastructure problem that has held back maritime operations for years.

Reliable autonomous launch and recovery at sea has been a critical bottleneck. If this system proves durable in real-world salt-heavy and high-motion conditions, it could unlock much wider adoption of drones across offshore industries.

The $7.5 million seed round demonstrates investor belief in the concept. The real test will come with extensive at-sea trials and first commercial deployments.

Bottom line: This is practical, deployment-focused innovation. Infrastructure solutions like this often drive faster industry scaling than incremental aircraft improvements alone. Worth following closely over the next 12-18 months.

Photo credit: Waiv
