NASA’s Dragonfly Octocopter Hits Three Build Milestones Ahead of 2028 Titan Launch

NASA’s Dragonfly rotorcraft is no longer a render. Over the past two months, the team at the Johns Hopkins Applied Physics Laboratory (APL) has bolted together the lander’s primary structure, dropped a full-scale parachute system over the Arizona desert, and finished testing the laser inside the science payload that will sniff Titan’s surface for the chemistry of life, as Astrobiology.com reported.

The three milestones, announced by NASA on April 24, push the most ambitious drone ever built closer to its July 2028 launch window. After a six-year cruise, Dragonfly will become the first powered, fully controlled aircraft to fly on a body other than Earth. Unlike Ingenuity’s brief Mars demonstration flights, this one is the mission itself, not the bonus feature.

A 230-pound airframe built for an alien atmosphere

The body of the rotorcraft started arriving at APL’s cleanroom in Laurel, Maryland in early April. The panels were designed at APL and manufactured by Lockheed Martin Space in Denver, built from honeycomb composite with aluminum face sheets just 0.01 inches thick. That’s roughly a quarter the thickness of a credit card.

That construction yields a primary structure weighing only 230 pounds, a number that matters because Dragonfly has to fly under its own power on arrival. Every gram saved in the airframe is a gram available for instruments, batteries, or fuel margin during atmospheric entry.

“The structure is remarkably light and yet strong enough to withstand the intense forces of launch and the entry into Titan’s atmosphere,” said Gordon Maahs, Dragonfly’s mechanical systems engineer at APL. “We’ve never built anything like it.”

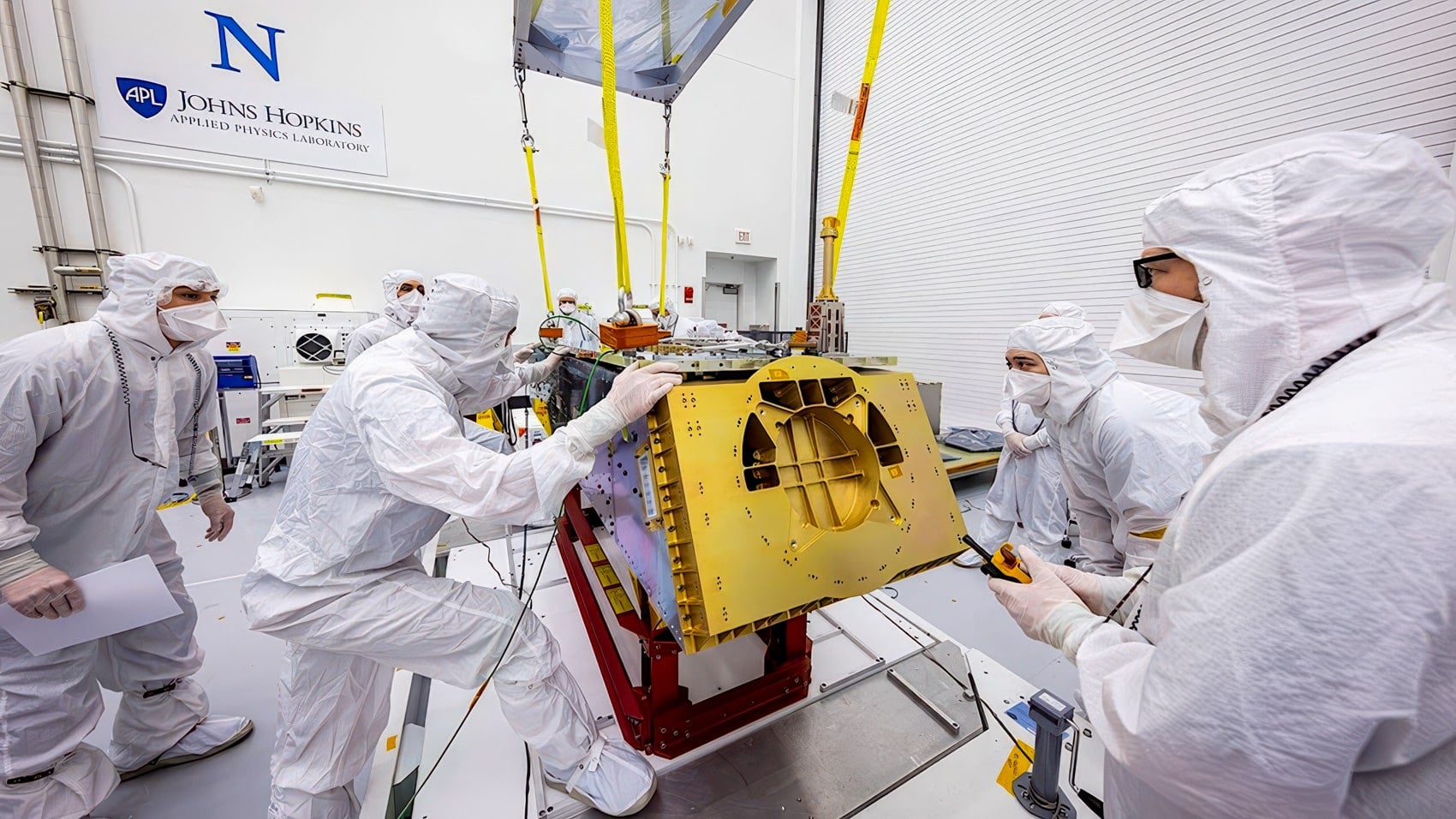

On April 3, engineers Sean Gazarik, Tyler Radomsky, Amber Dubill and Emory Toomey completed a fit check of the top deck, the section that carries Dragonfly’s telecommunications hardware, onto the rest of the lander body.

The team also installed the mounting plate and cover for the Multi-Mission Radioisotope Thermoelectric Generator (MMRTG), the same nuclear power source class flying on Curiosity and Perseverance. The actual MMRTG won’t be installed until just before launch.

In May, the assembled structure heads into vibration and static-load testing to validate it can survive the violence of an Atlas V or Falcon Heavy ascent and the deceleration of Titan atmospheric entry.

“The lander is starting to look like Dragonfly,” said Hunter Reeling, the thermal mechanical integration and test lead at APL. “We’re excited to see the designs coming to life.”

First full-scale parachute drop test passes in Arizona

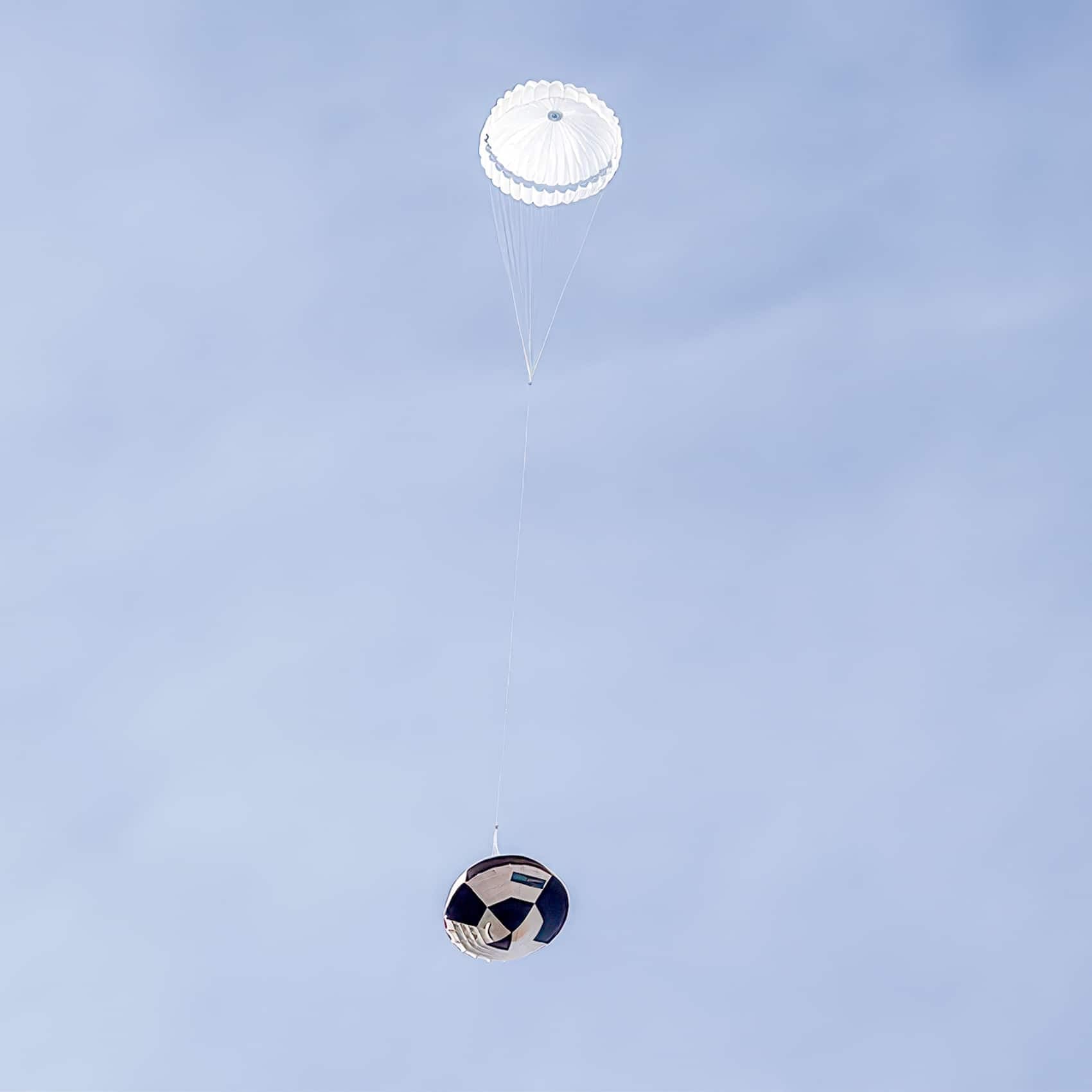

On February 11, in the skies over Eloy, Arizona, the Dragonfly team ran the first full-scale trial of the parachute system that will slow the rotorcraft from supersonic entry speeds to a safe handoff into powered flight.

Both the drogue and the main parachute were tested as a complete sequence, replicating what Dragonfly will face when it punches into Titan’s atmosphere.

The test was led by Airborne Systems of Santa Ana, California, in coordination with NASA’s Langley Research Center in Virginia and NASA’s Ames Research Center in California’s Silicon Valley.

The Entry, Descent and Landing (EDL) sequence is unforgiving. Dragonfly arrives inside an aeroshell with a 12-foot heat shield. The drogue chute deploys first to stabilize and slow the capsule, the main chute takes over for the bulk of the deceleration, the heat shield separates, and Dragonfly drops out of the backshell to fly the final kilometer to the surface under its own rotors, picking its landing site autonomously with radar and lidar.

A second round of design-qualification drop tests is planned for October before the team commits to building flight hardware.

DraMS laser system clears its first integrated test

While the airframe came together at APL, Dragonfly’s portable chemistry lab passed its own milestone at NASA’s Goddard Space Flight Center in Greenbelt, Maryland. On April 15, engineers completed testing of the laser desorption system inside the Dragonfly Mass Spectrometer (DraMS), the instrument that will identify what Titan’s surface is actually made of.

DraMS uses two methods to release molecules from collected samples: laser desorption and gas chromatography. The April test confirmed the laser and mass spectrometer can identify chemicals in a known sample, even at very small concentrations. The gas chromatography system, contributed by France’s CNES space agency, gets installed in the coming weeks for similar verification.

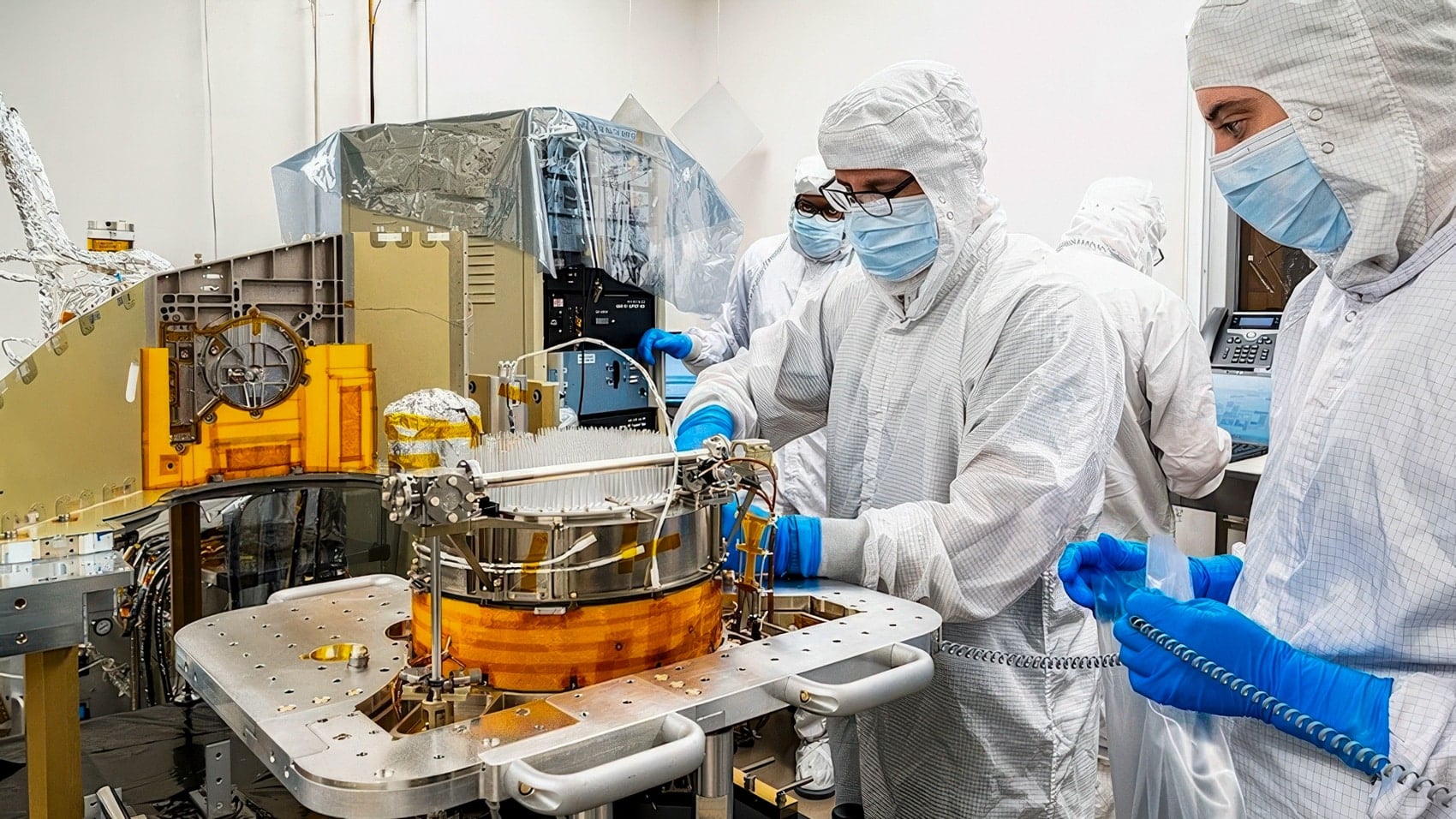

Samples reach DraMS through DraCO, the Drill for Acquisition of Complex Organics, built by Blue Origin’s Honeybee Robotics. On March 6, engineers moved the DraCO sample carousel, which holds the cups that will receive drilled material, into position next to the mass spectrometer at Goddard.

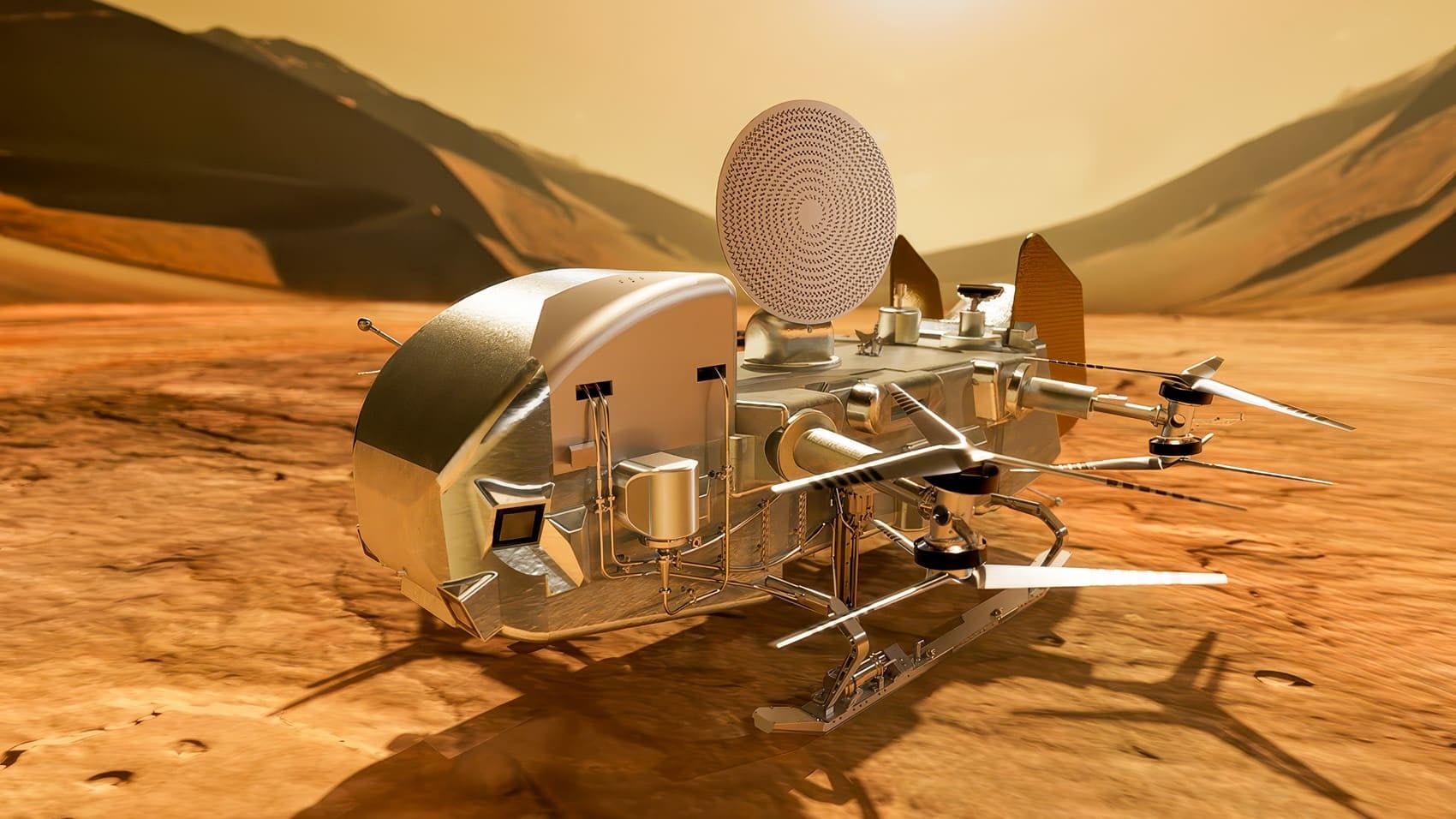

Dragonfly Specs

• Configuration: Octocopter, four pairs of counter-rotating coaxial rotors in X8 layout
• Rotors: Eight rotors total, 53 inches (1.35 m) diameter each
• Mass: Approximately 1,900 pounds (875 kg) total; primary airframe 230 pounds
• Dimensions: 12.5 feet long × 12.5 feet wide × 5.5 feet tall
• Power: Multi-Mission Radioisotope Thermoelectric Generator plus 134 Ah battery
• Cruise speed: Approximately 22 mph (10 m/s)
• Maximum altitude: 13,000 feet (4 km)
• Total range: Up to 110 miles (175 km) across mission lifetime
• Communications: Direct-to-Earth via NASA’s Deep Space Network, high-gain and medium-gain antennas
• Target: Saturn’s moon Titan, Shangri-La dune fields and Selk Crater region
• Launch: No earlier than July 2028
• Arrival: 2034
• Mission duration: Approximately 3.3 years

DroneXL’s Take

I’ve flown my Neo 2 in cold mornings in Quito and worried about battery life. Dragonfly will operate at –290°F. It will sit on the ground through Titan nights that each last 192 Earth hours, then lift off again and fly several miles to the next site.

The flight environment is actually friendlier than Earth in one sense: Titan’s atmosphere is four times denser than ours and gravity is one-seventh, so the power needed to hover a given mass is about 38 times lower. That’s the engineering bargain that makes an 875-kilogram drone flyable in the first place.

What strikes me about this update isn’t the science. It’s that the hardware is real now. There are panels in a cleanroom, a parachute that opened correctly over Arizona, a laser that fired into a test sample at Goddard. Every interplanetary mission lives in slideware until it doesn’t, and Dragonfly just stopped living in slideware.

Realistically, July 2028 is still two years out and a lot can slip between vibration testing and a launch pad. But for the first time, the rotorcraft that’s supposed to fly on another world looks like something you could walk up to and touch.

The next major checkpoint is the May load tests on the airframe, followed by the October parachute qualification round. If both clear, the team can start building the actual flight vehicle.
